How to build and install simple DIY floating shelves

There are lots of different types of shelves, but floating shelves are always popular. Learn how to build and install simple DIY floating shelves with our tutorial and plans!

How to build simple DIY floating shelves - Charleston Crafted

In working on the design for our guest bedroom makeover, we had to figure out what to do with the big empty wall above our bar that previously just had a random iron pipe that the old owners hung up.

No idea what the old bar was supposed to be for and they drilled at least twice as many holes as they needed before they got it in place (with no anchors or studs), but it had to go.

We decided to add some true floating shelves to the space in an offset pattern that we thought would allow for some aesthetic looks and also be functional to get some decor off the bar.

We’ve previously hung a floating shelf for a mantel on our shiplap fireplace that was made of a solid piece of thick curly maple and even tried installing floating shelves in our old master bathroom directly to the studs.

These easy DIY floating shelves are simple to replicate and easy to build, by building a nice box for the shelf and a bracket to install the the wall. Let’s show you how to do it!

Easy DIY floating shelves

Knowing how to make floating shelves is a great skill to have because they can be used anywhere in your home.

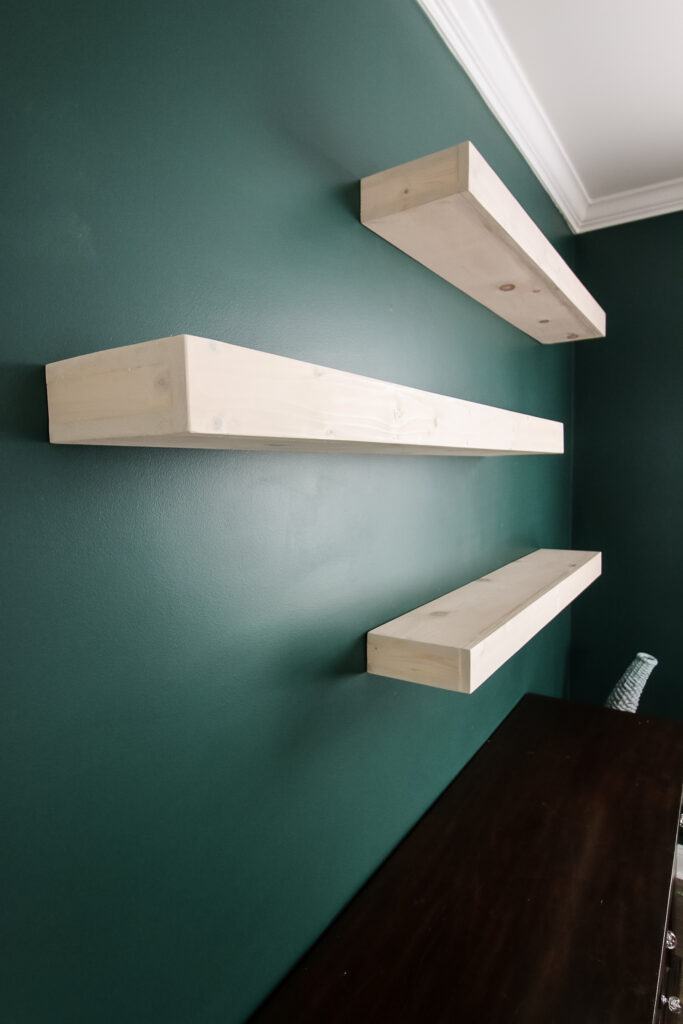

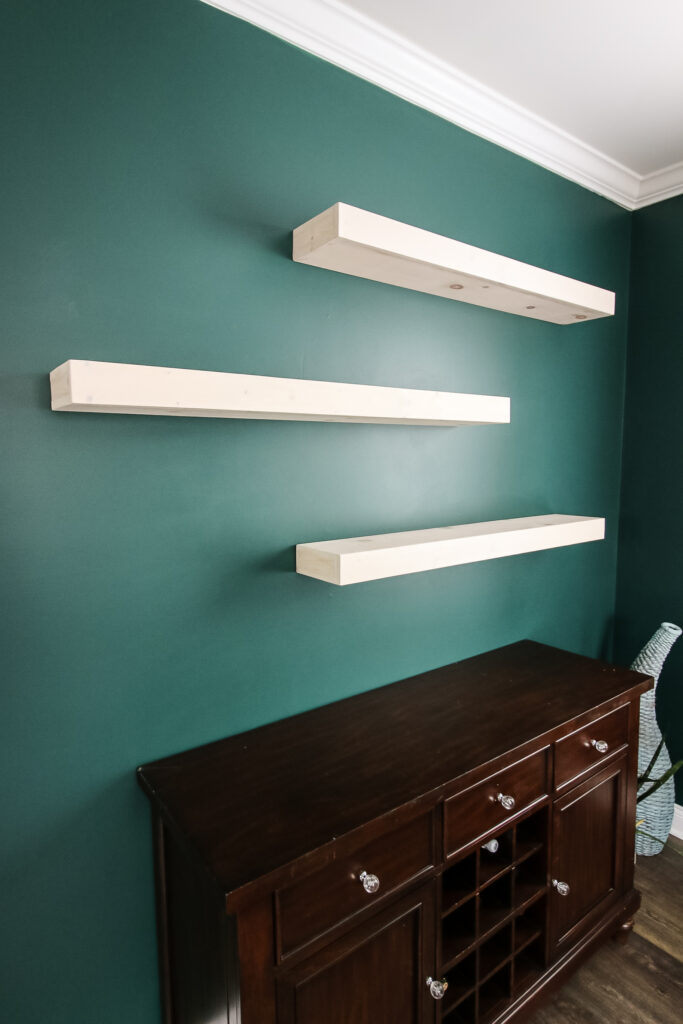

Empty floating shelves in place on wall

Floating shelves are always in style because they look great without the visible hardware.

These easy DIY floating shelves are simple to build and we’ll show you how to do it!

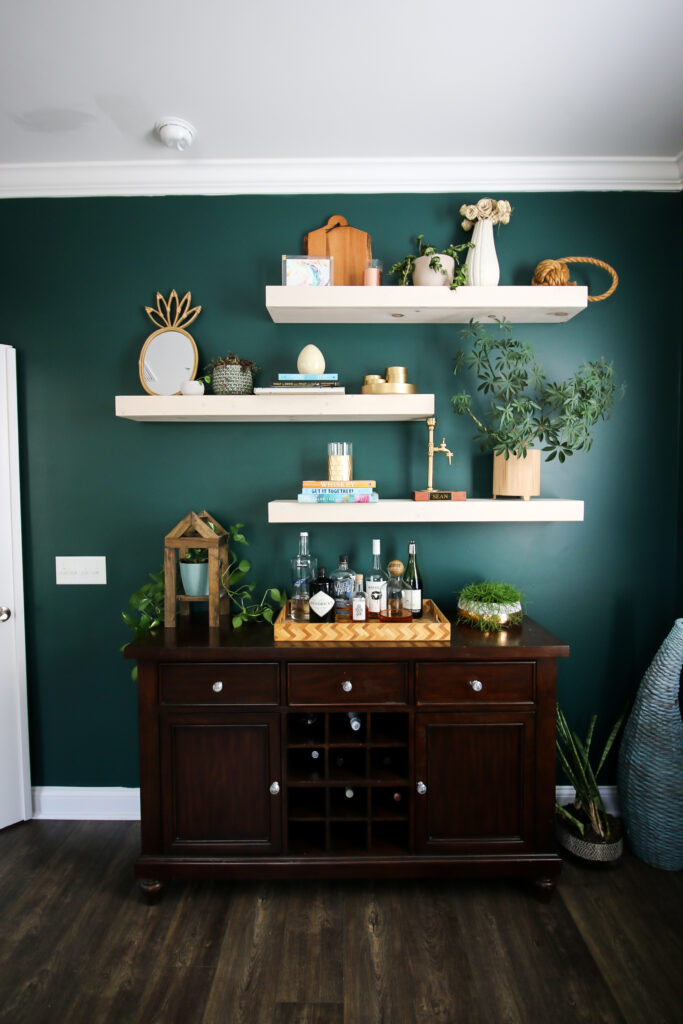

Full photo of DIY floating shelves above bar

How to build floating shelves

Here are the general steps for how to build simple DIY floating shelves! Make sure to download our woodworking plans to get the complete dimensions and step-by-step instructions to copy them completely!

How to build simple DIY floating shelves - Charleston Crafted

Materials needed to build floating shelves

  • 1×8 boards
  • 1×4 boards
  • Wood glue
  • Brad nails
  • 2 1/2″ screws
  • Wood stain

What wood do you use for floating shelves?

There are lots of options for wood to use for floating shelves. The key overall is to choose a wood that fits your aesthetic and/or budget.

You can build floating shelves out of any wood that you have or want to. It’s possible to use either soft wood, like pine, or hardwood like oak, depending on what look you want.

Pine wood used for floating shelves

You can also build floating shelves with plywood, which gives you more options for depth, but you will have to figure out how to cover the plywood edge if you don’t want that showing.

Steps for building a floating shelf

Step one: Cut, but don’t sand

Start by making all your cuts, but don’t bother sanding. Once the shelf is assembled, you’ll have to fill in nail holes and gaps, so it’s best to just wait and sand the outside all at once.

Step two: Attach sides to base

Using wood glue and nails, attach the two side pieces on top of the ends of the base piece of wood.

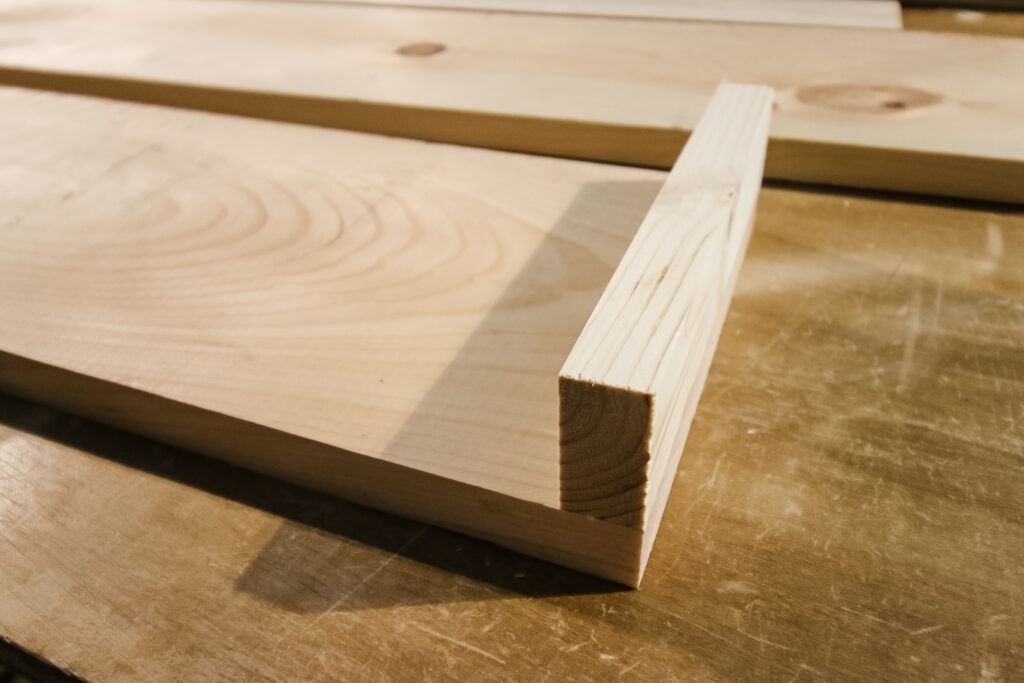

Attach sides to base of shelf

Step three: Attach front

Next, use wood glue along the front edge of the base and sides and attach the front board with nails.

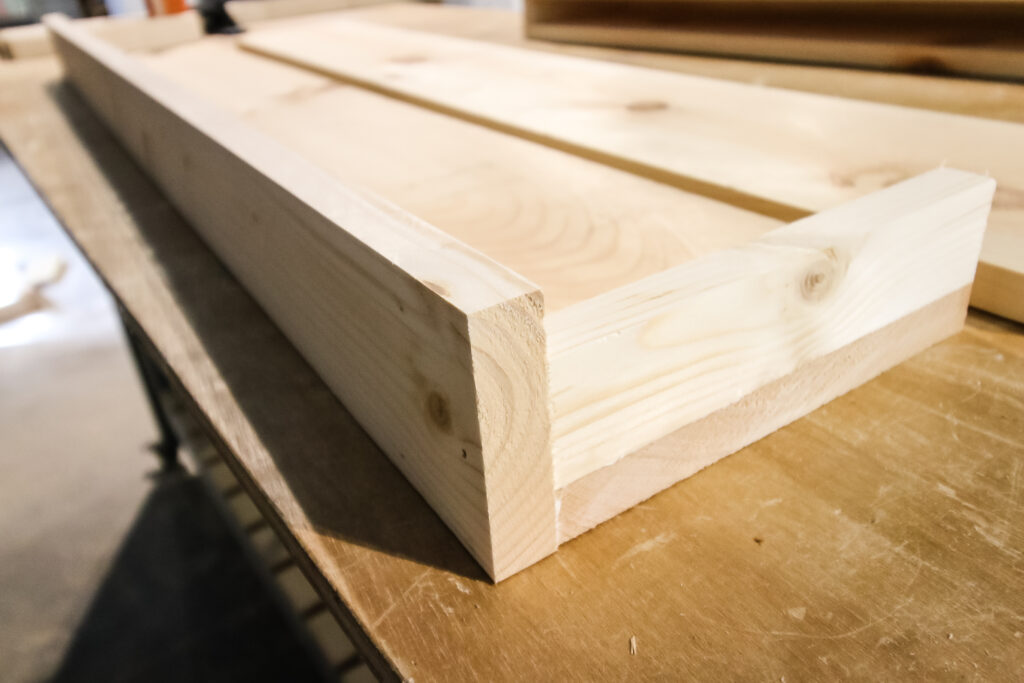

Attach front board to shelf

Step four: Attach top

Apply wood glue to the top of the sides and inside of the front piece and then attach the top board with nails.

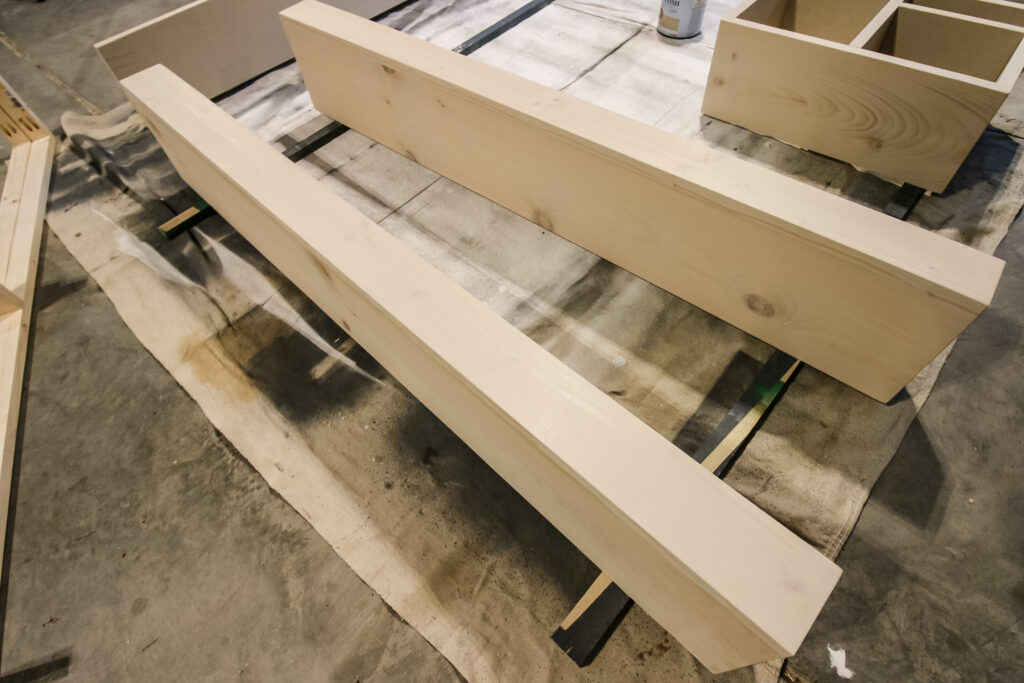

Floating shelves fully assembled

Step five: Finish work

Use wood filler to fill in all the nail holes and cracks. You can check out our full review of the best wood fillers here!

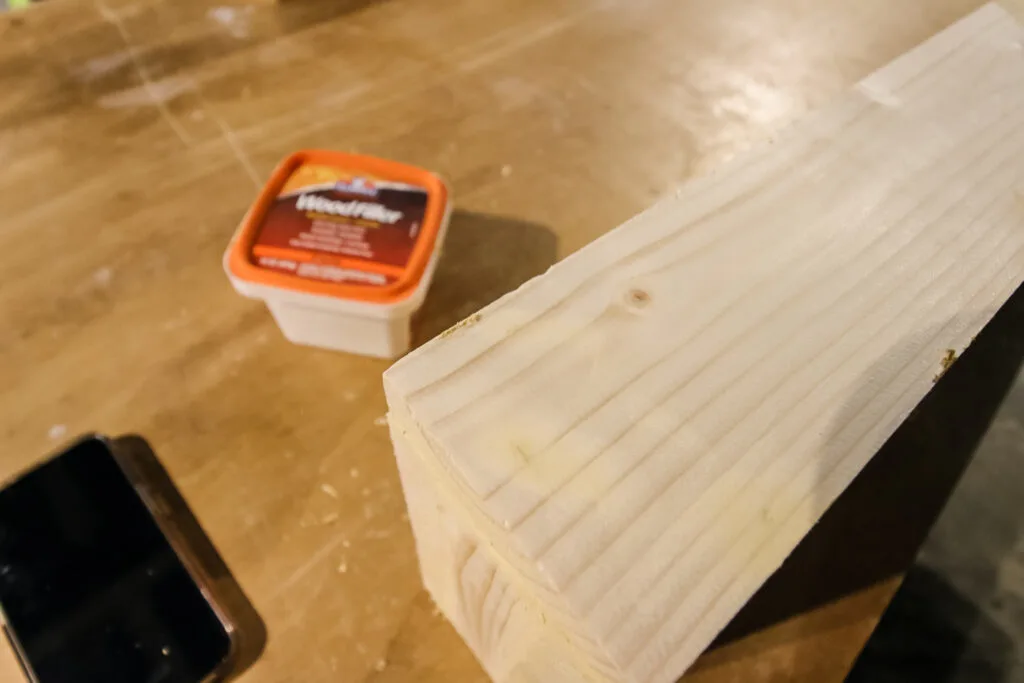

Adding wood filler to floating shelves

Then, sand everything smooth and apply a wood stain to match your decor!

Applying stain to diy floating shelves

How to build floating shelf brackets

The best way to hang floating shelves is to build a simple bracket to slide the shelf onto and then attach that directly into the studs on the wall. Here’s how to build floating shelf brackets.

Step one: Make cuts, don’t sand

Again, no need to sand here. You can wait until it’s assembled to do a light sanding.

Step two: Pocket holes

Use a pocket hole jig (our favorite is the Kreg 720 Pro) to drill pocket holes in the end of the brackets.

Step three: Assemble

Using wood glue and pocket hole screws, attach the brackets to the base and then give a light sanding to the sharp edges.

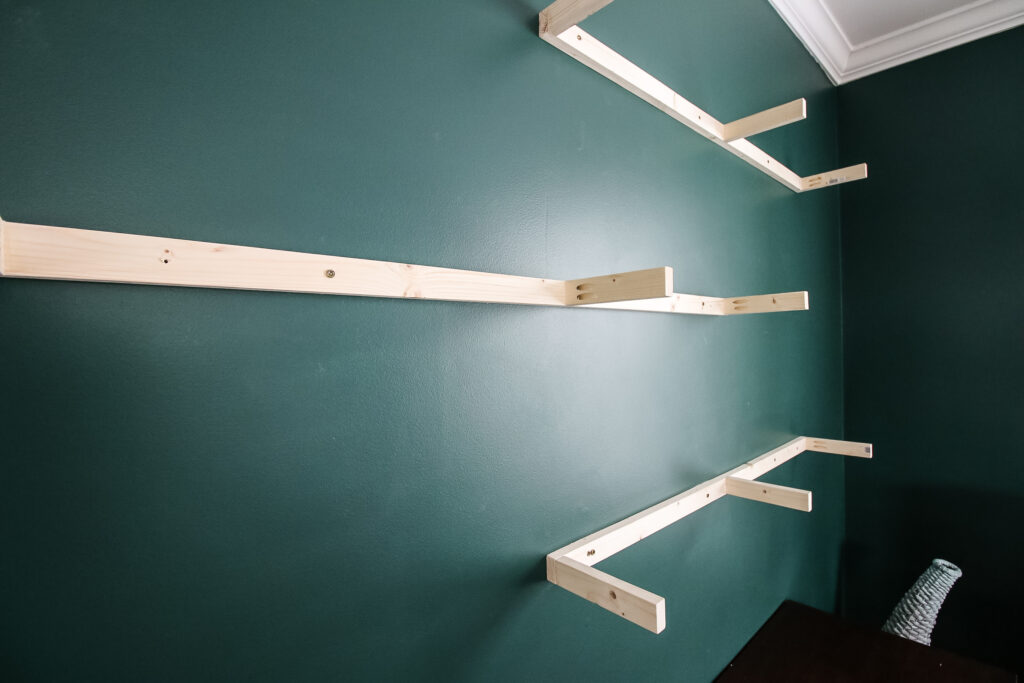

Completed floating shelf brackets

How to install floating shelves

Installing these simple DIY floating shelves is as easy as building them!

The first step is to use a stud finder to locate the studs in the wall you’re planning to hang the shelves on.

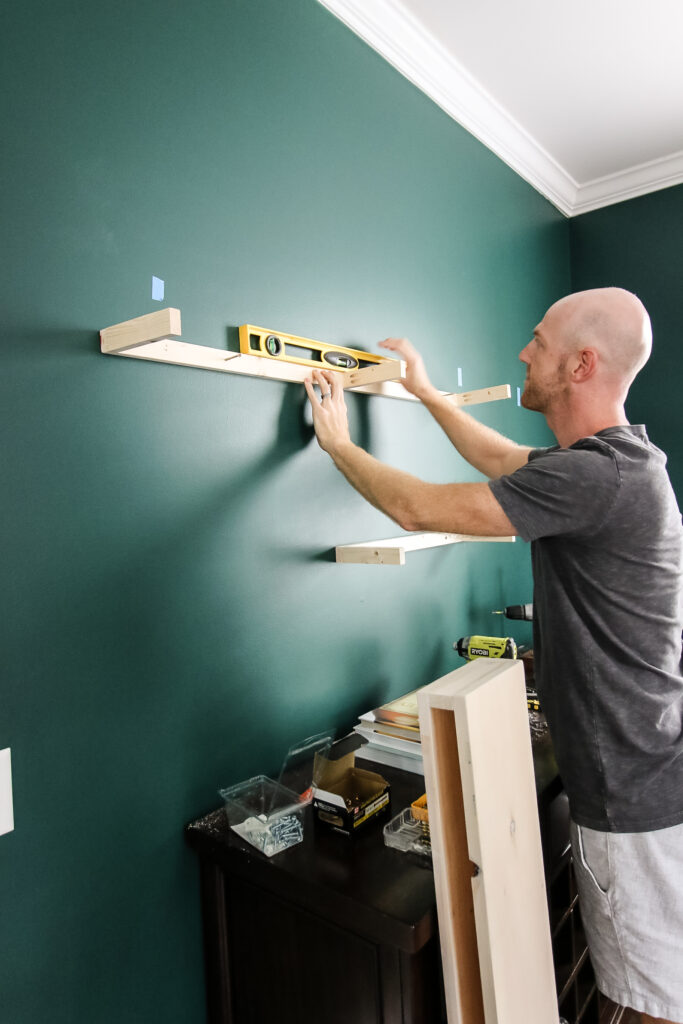

Finding stud and leveling bracket

Align the shelf bracket you just built where you want to hang it and mark where the studs will hit. With the shelves being four feet long, you should be able to come in contact with three studs, but you can use heavy duty drywall anchors if you need to.

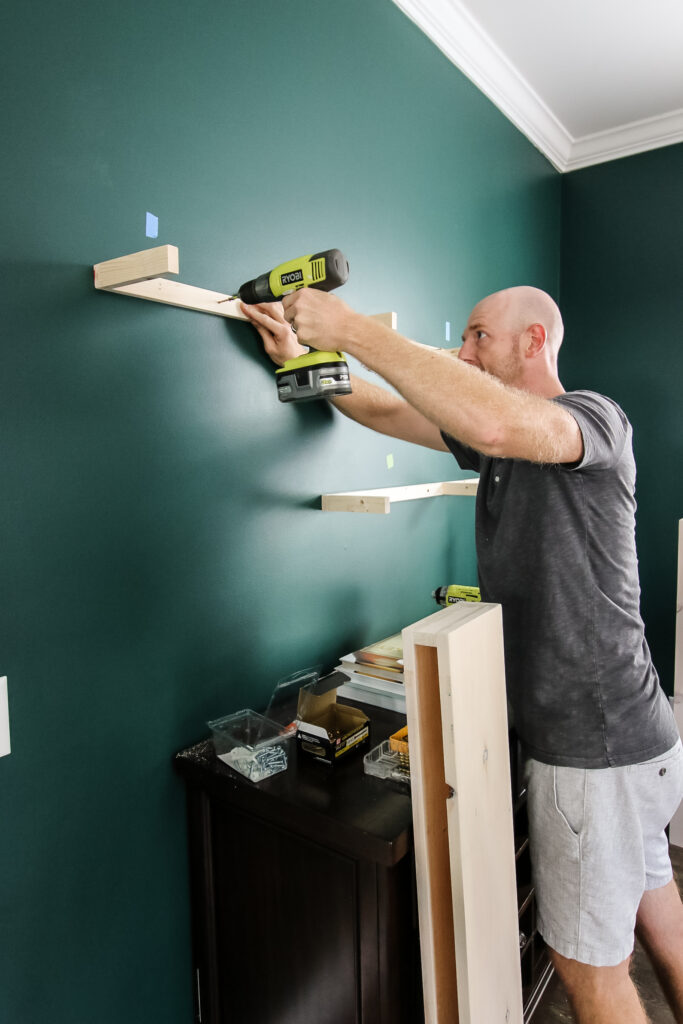

Installing shelf brackets

Drill pilot holes in the bracket base and then attach the bracket to the wall using 2 1/2″ wood screws. Since this is the bracket, you won’t need any additional mounting brackets for this project!

Sliding floating shelf box onto brackets

With the bracket attached to the wall, simply slide on the shelf around the brackets and push it flushly against the wall! Then repeat for any additional shelves!

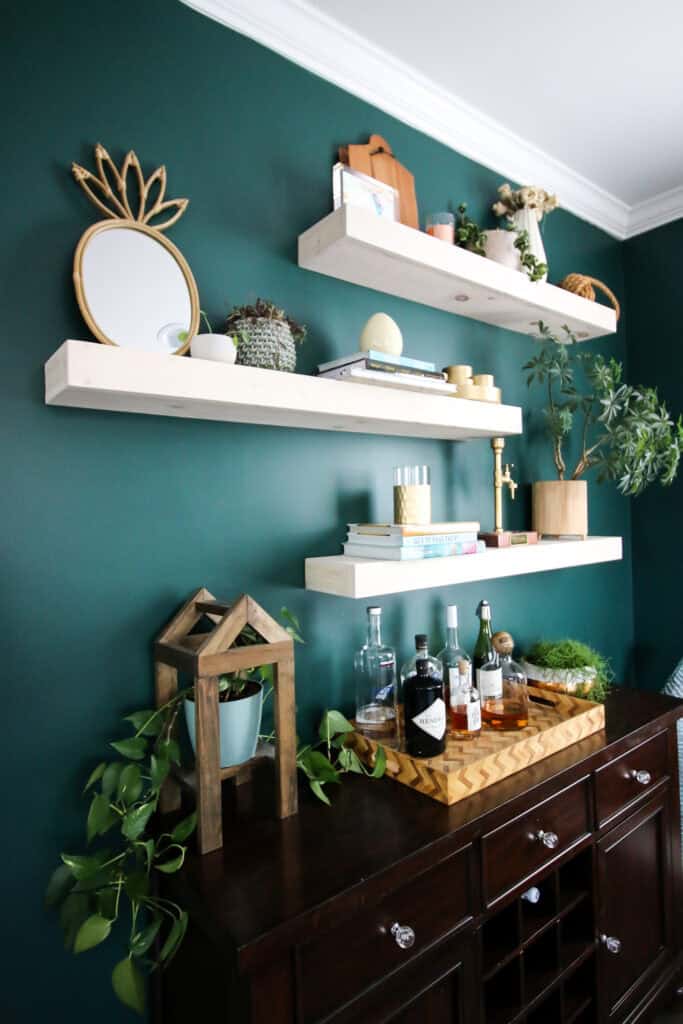

Completed simple DIY floating shelves

We love how these shelves turned out!

Completed simple DIY floating shelves

These DIY floating shelves were really easy to build and replicate. The width is great for doing a staggered look because they extend further that way.

These shelves are very sturdy without being too heavy and we love how they look with our decor above the bar.

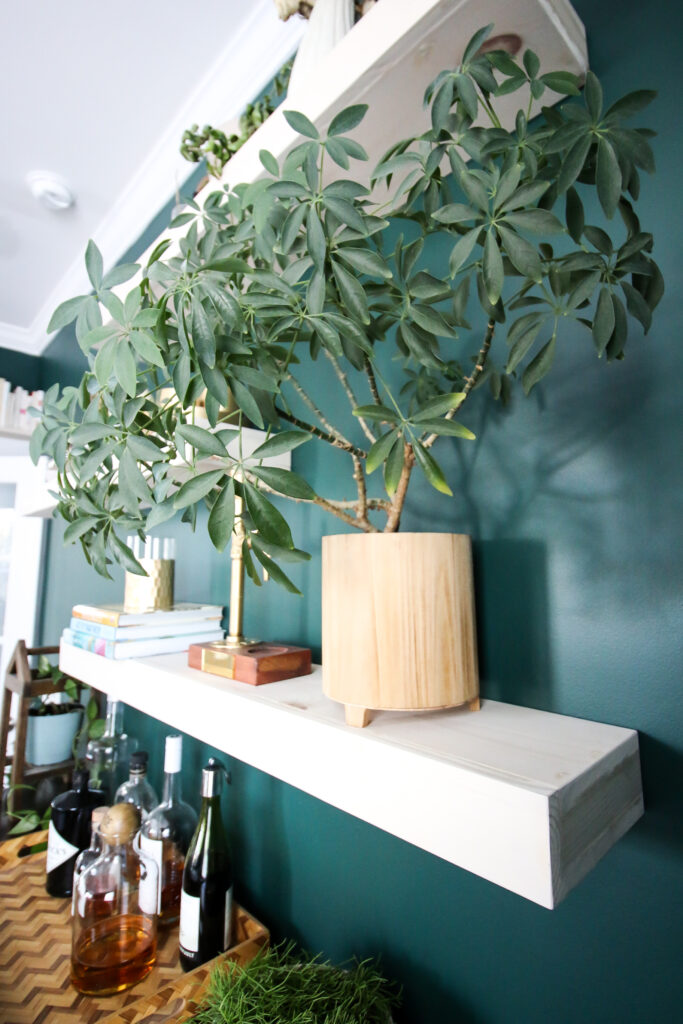

DIY floating shelf with decor

Plus, we can always hide something inside the shelf if we need to…

Simple DIY floating shelf woodworking plans

Like how we did this and want to replicate the project in your own home? Grab our DIY floating shelf plans and get started!

Link to woodworking plans for DIY floating shelves

These plans show you how to build a simple DIY floating shelf and the bracket to hold it to the wall. The plans can be replicated for however many shelves you need!

Our woodworking plans include a material list, cut list and step-by-step instructions with computer model imagery to show you want to do!
