How to build a wall-mounted fold-down vanity- FREE plans

If you need a vanity but don’t have a lot of space, check out how we built a wall-mounted fold-down vanity in our guest bedroom to give us what we needed without taking up the floor!

This post was sponsored by National Hardware. National Hardware’s Made By Me kits are the perfect way to help get you started with a project like this. All opinions are our own. Thank you for supporting the brands that make Charleston Crafted possible!

How to build a wall-mounted fold-down vanity - Charleston Crafted

Our guest bedroom is in the midst of a makeover, and we are trying to make the space both more functional for guests, but more importantly, for our family on a day-to-day basis.

In terms of making the space more functional for guests, we wanted to give our mothers a place to get ready in the room.

The guest bedroom is the first thing in our house when you walk in the front door and was designed to be an office, so there’s no bathroom access in the room. Both of our mother’s like to get their makeup ready, so we wanted to give them a better space to do that.

We designed a wall-mounted fold-down vanity and used the National Hardware Made By Me Fold Down Wall Organizer Hardware Kit to make it function.

Let’s show you through the rest of this post how we built our DIY wall-mounted fold-down vanity and get you the free woodworking plans to make one yourself!

Check out the DIY built-in desk vanity with hidden storage we built at our old house!

DIY wall-mounted vanity

Our goal creating this DIY wall-mounted vanity was to make a space for our mothers to be able to do their makeup in their room in the morning.

This meant that the vanity needed to be functional, but couldn’t be too big or the fold down door would stick out too far.

https:/How to build a wall-mounted fold-down vanity - Charleston Crafted/www.national-hardware.com/

Lots of people make fold down makeup vanities that double as desks and use much bigger dimensions, but you have to stand much further away from the wall.

This one was designed to be the minimum depth – 8 inches – for the hardware to function properly.

Here’s how we built the vanity and how we used National Hardware’s kit to put the hardware on to make it work and hang on the wall!

Materials needed to build a DIY wall-mounted fold-down vanity

Here are the materials you’ll need to build this DIY fold-down vanity:

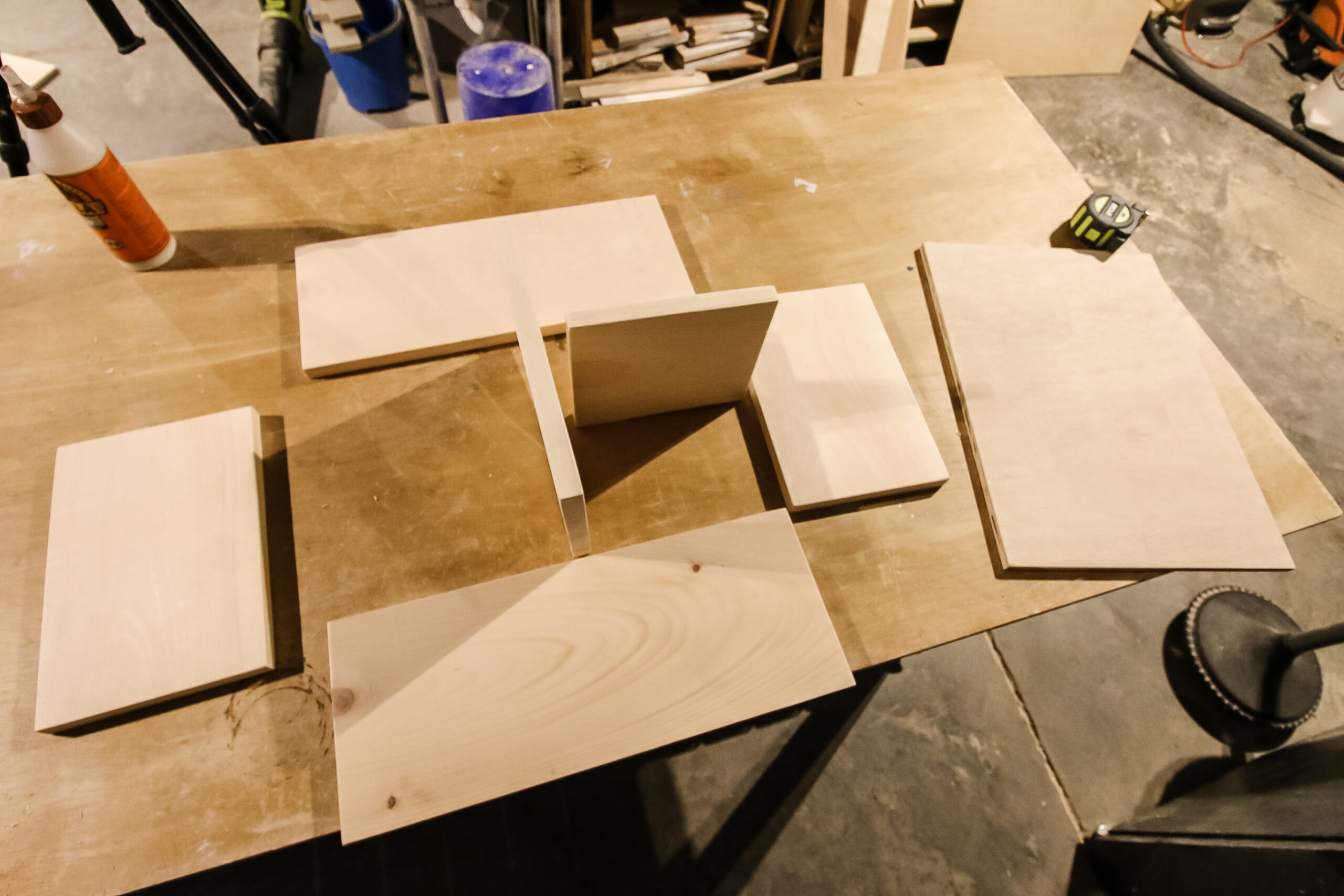

Cuts for wall mounted fold down vanity

How to build a wall-mounted vanity

Building a wall-mounted vanity is a pretty straightforward project. The overarching idea is to build a square frame and use an inner framework that works for your needs.

The National Hardware Made By Me Fold Down Wall Organizer Hardware Kit actually comes with a good set of directions with specific dimensions you can use to build a vanity or desk.

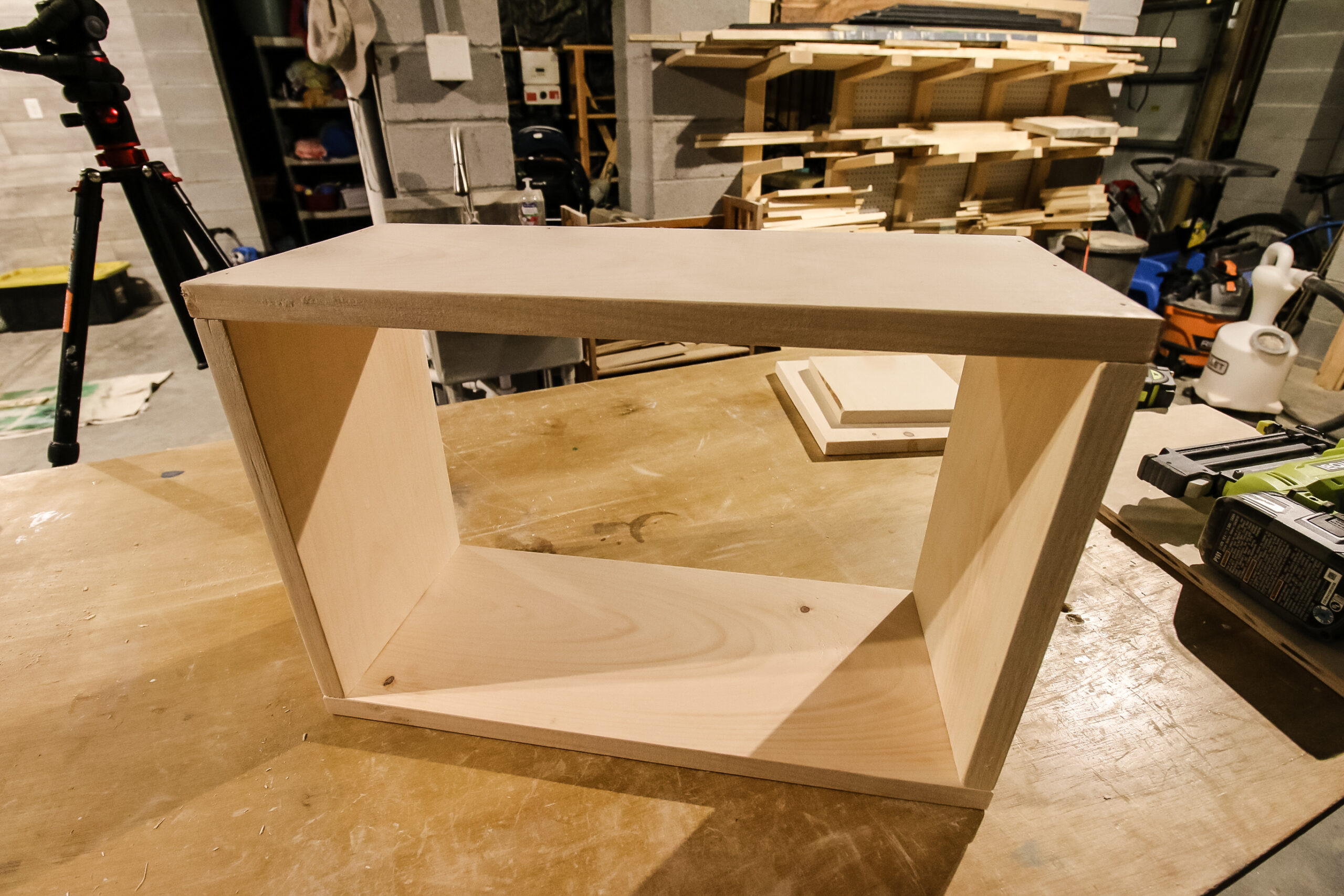

Build frame of vanity

Start by building a square frame, using wood glue and either nails or screws to hold it together.

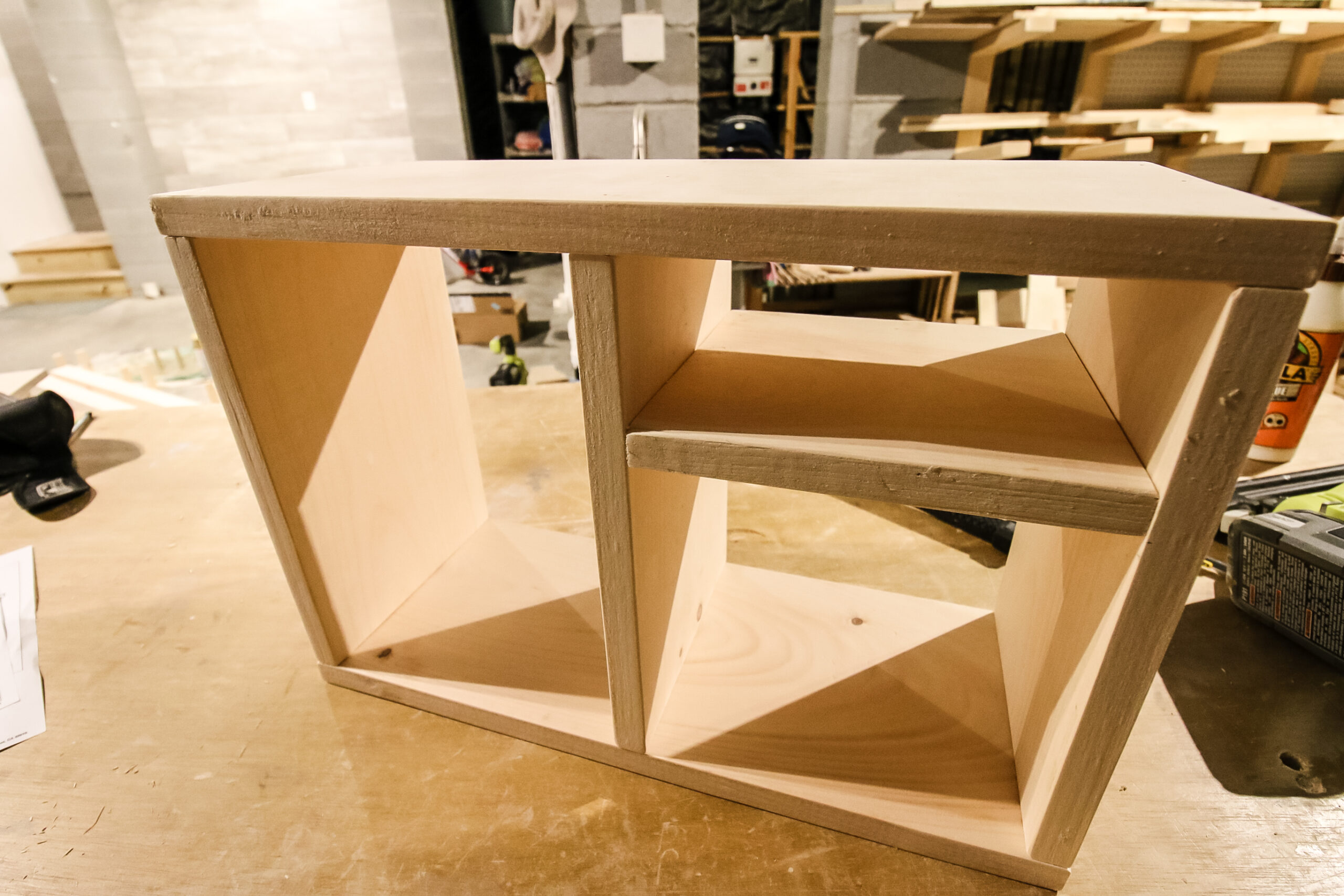

Middle dividers on fold down vanity

Then, attach a middle vertical divider and a horizontal divider on one side. These can be adjusted to the exact height you think you’ll need for what you’ll put in there.

You also need to cut a fold-down door out of plywood. This should be the exact same dimensions as the frame of the vanity.

Staining fold down vanity

Once it’s all assembled, fill any holes with wood filler, then add your stain of choice!

How to install National Hardware’s Fold Down Wall Organizer Hardware Kit

This vanity wouldn’t be really useful if it didn’t have a convenient way to open it. Luckily, that’s where the National Hardware Fold Down Wall Organizer Hardware Kit comes in handy!

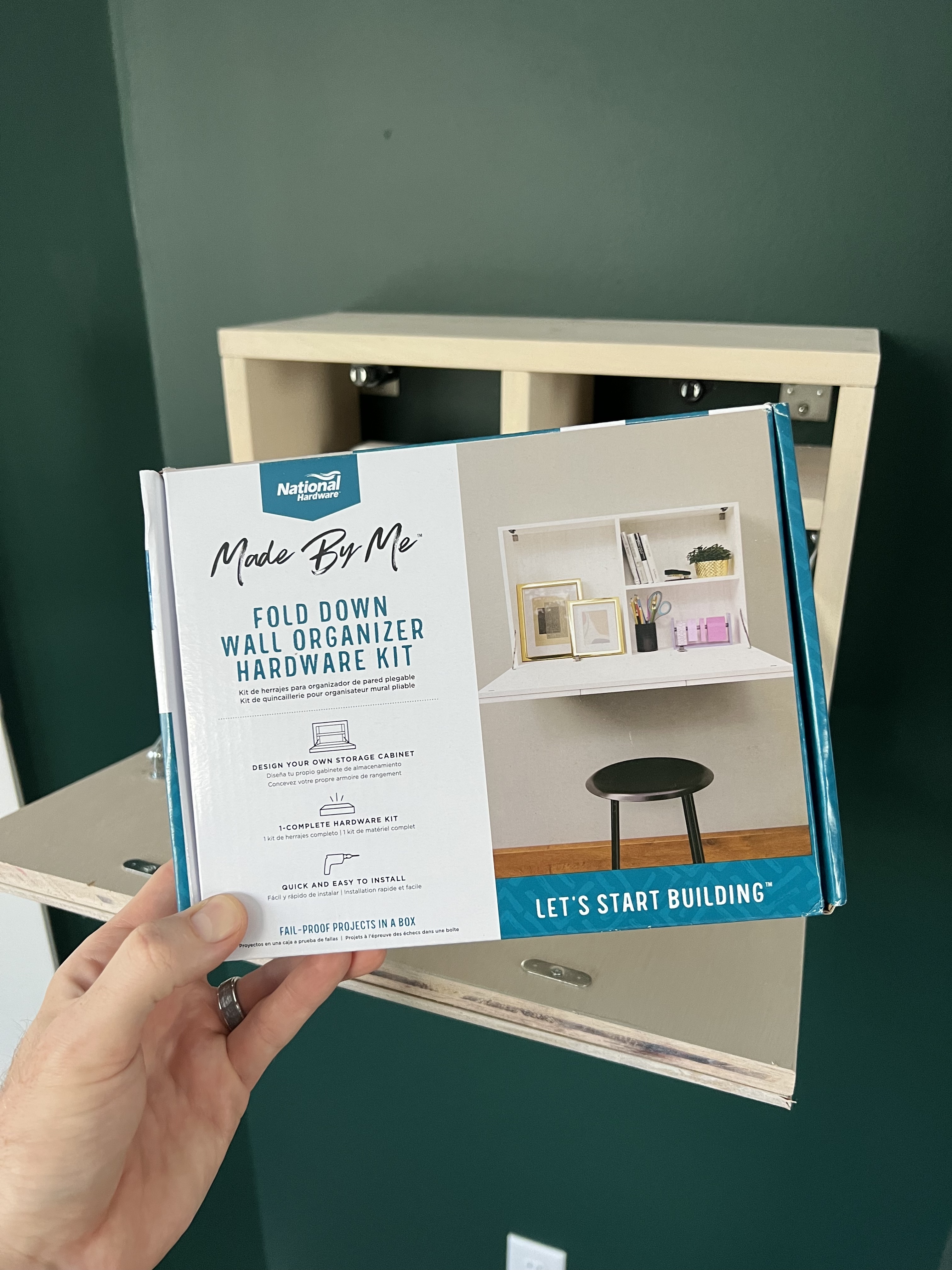

National Hardware Fold Down Wall Organizer Kit

The hardware kit is great for multiple uses, including vanities, storage, desks or tables, all of which can be wall-mounted and save space on your floor.

The kit comes with two hinges and two folding arms for ease with opening and closing your unit. It also includes two magnetic catches to latch closed and two support braces for mounting it to the wall.

The kit is nice because you don’t have to go out and hunt for each piece individually that you would need for this project. It’s bundled and ready to go along with step by step instructions.

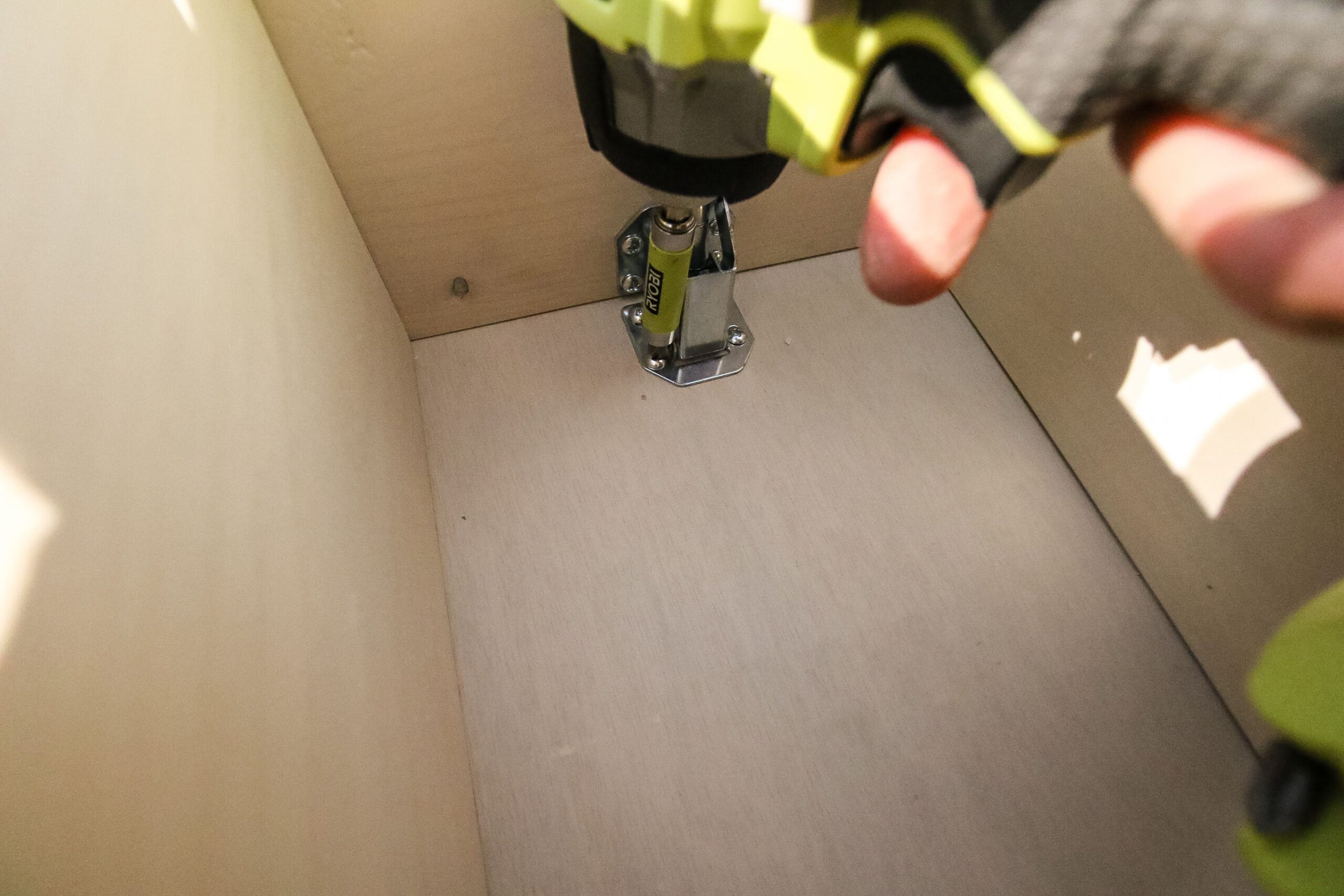

Attaching hinges to vanity

We started by attaching the two hinges to the frame and the face. These help open the door smoothly.

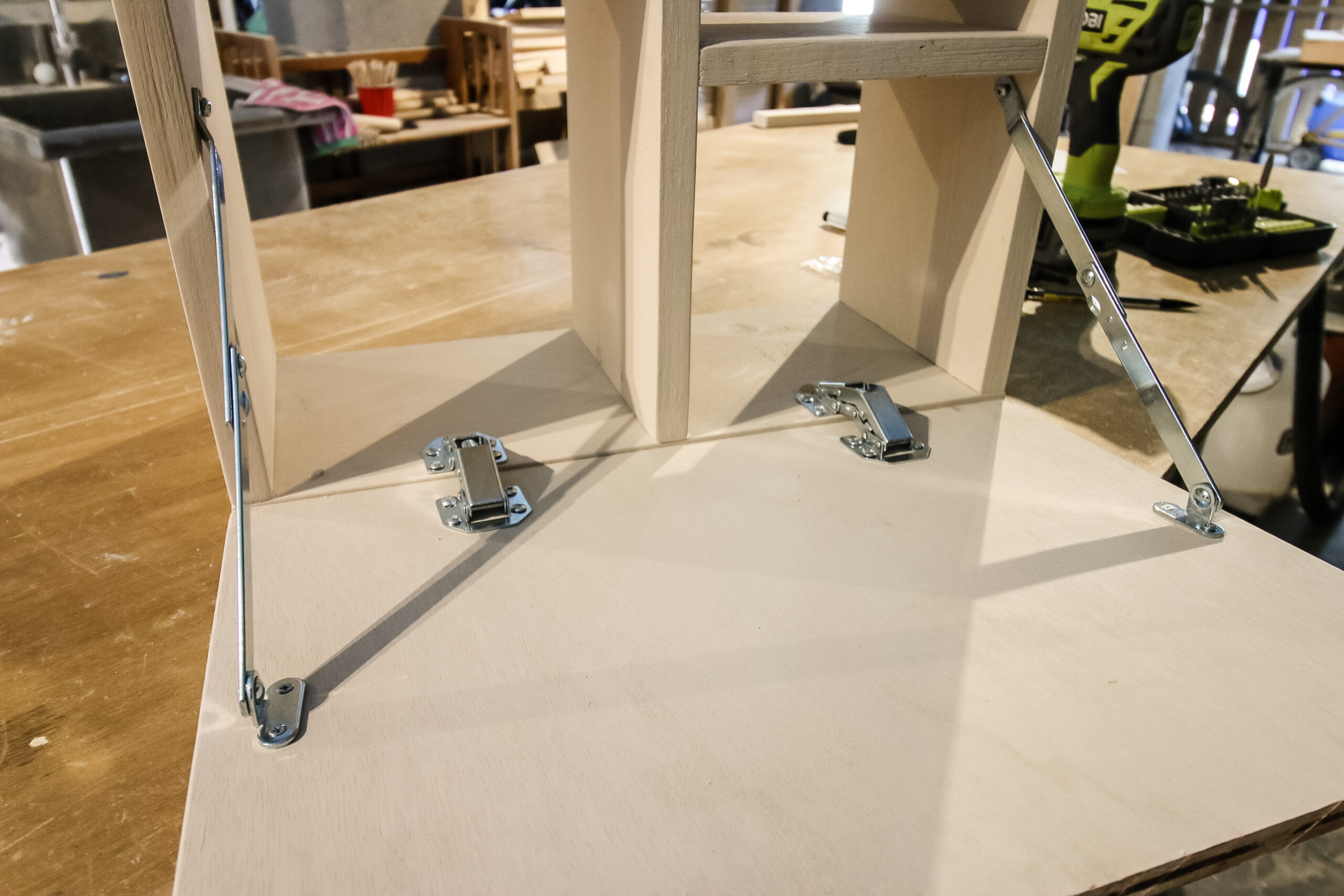

Folding arms attached to vanity

Then, we added the folding arms that help hold the door up when it is fully extended to open!

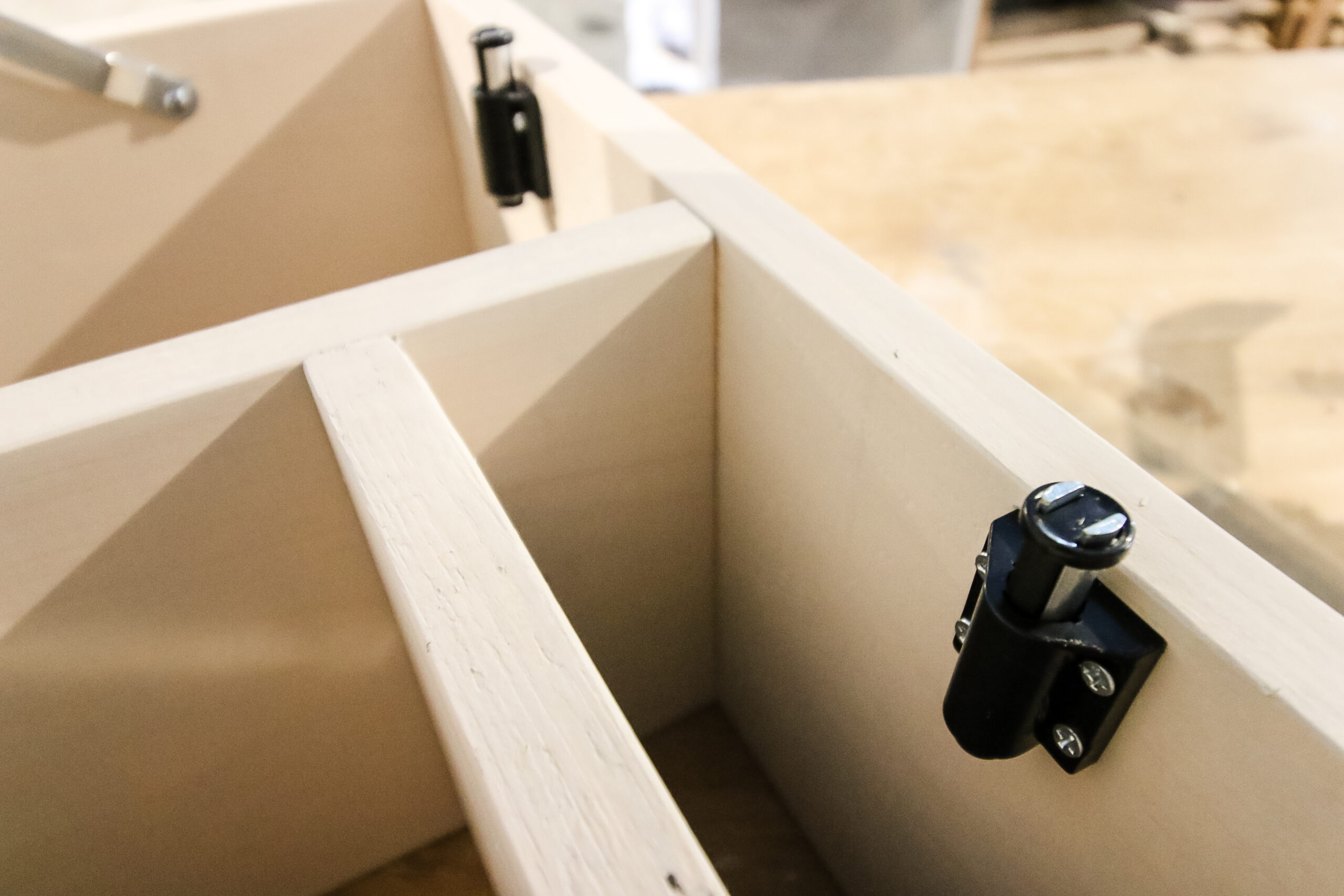

Magnetic catches attached to vanity

The door also opens and closes with a push thanks to the magnetic catches that are easily screwed into place!

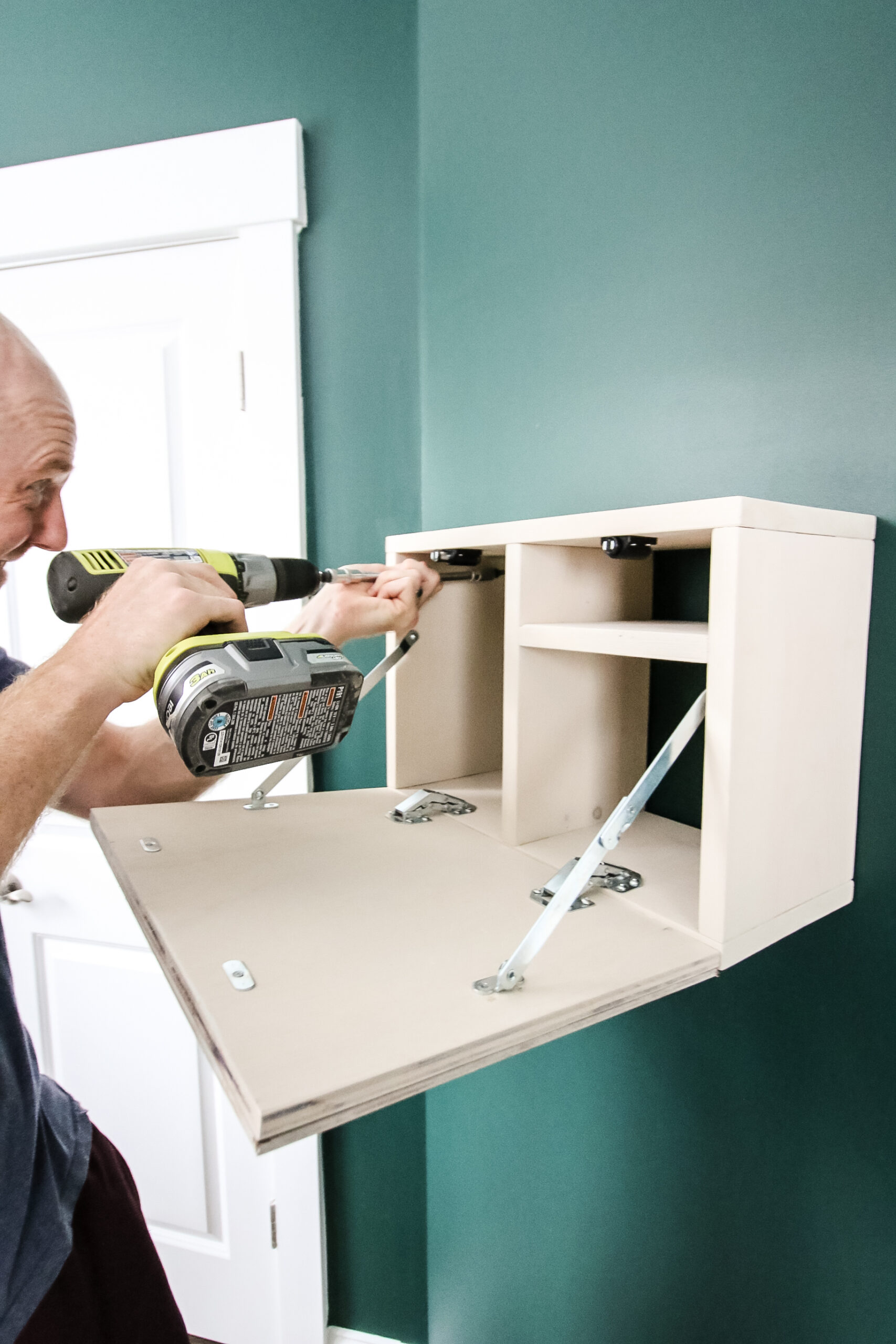

Attaching fold down vanity to wall

Finally, we mounted our vanity to the wall using the included heavy duty support braces. We anchored these into the wall for full support!

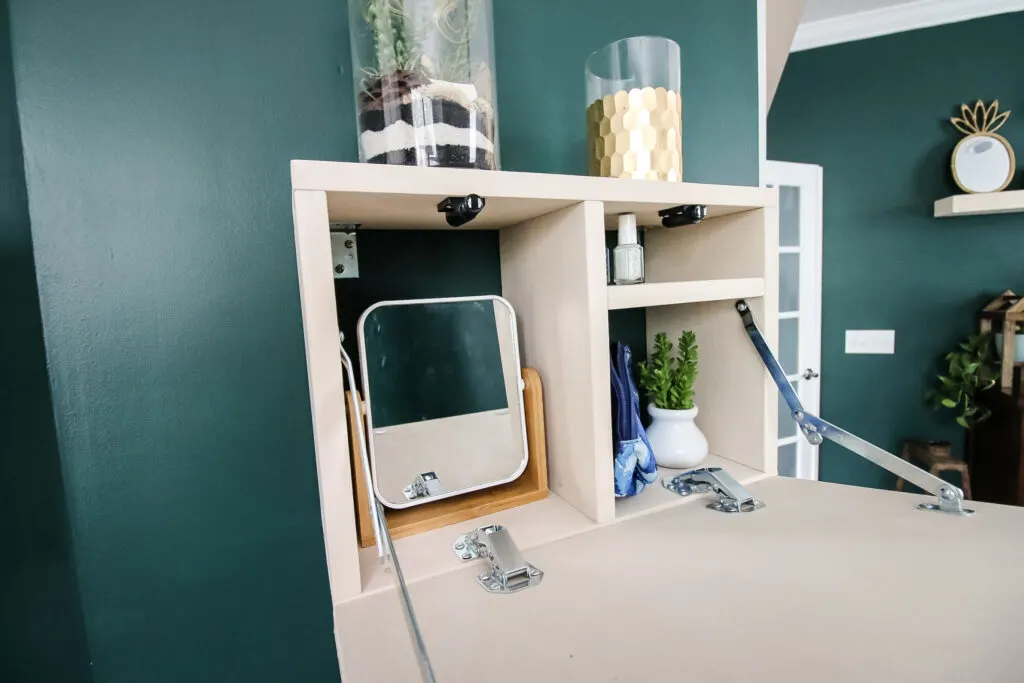

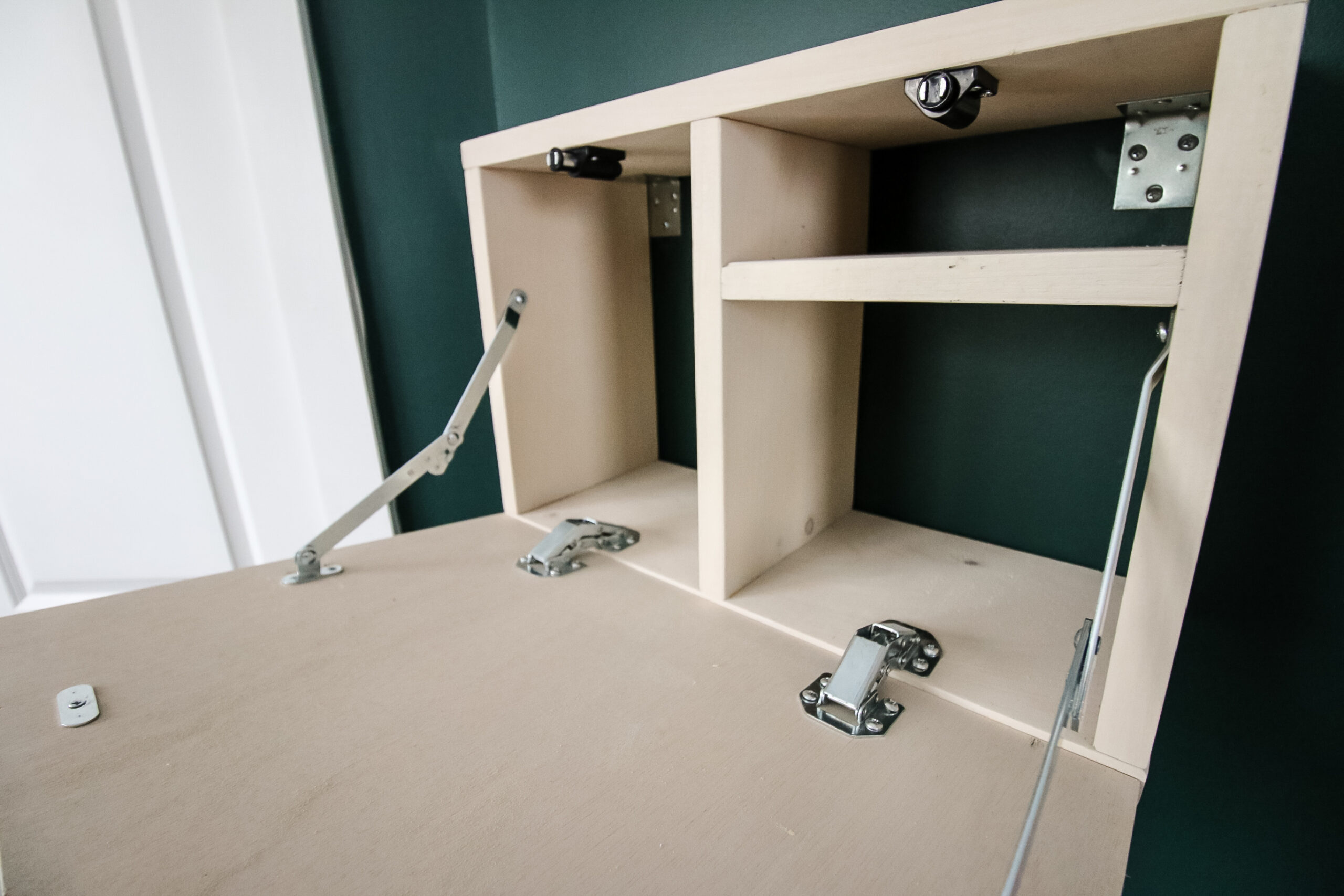

Inside of completed wall mounted vanity

Check out these other projects we made with National Hardware Made By Me kits!

Final look at our wall-mounted DIY makeup vanity!

Once it was in place, we added to the door a piece of peel and stick wallpaper leftover from our jungle nursery at our old house so it would look like an art piece on the wall.

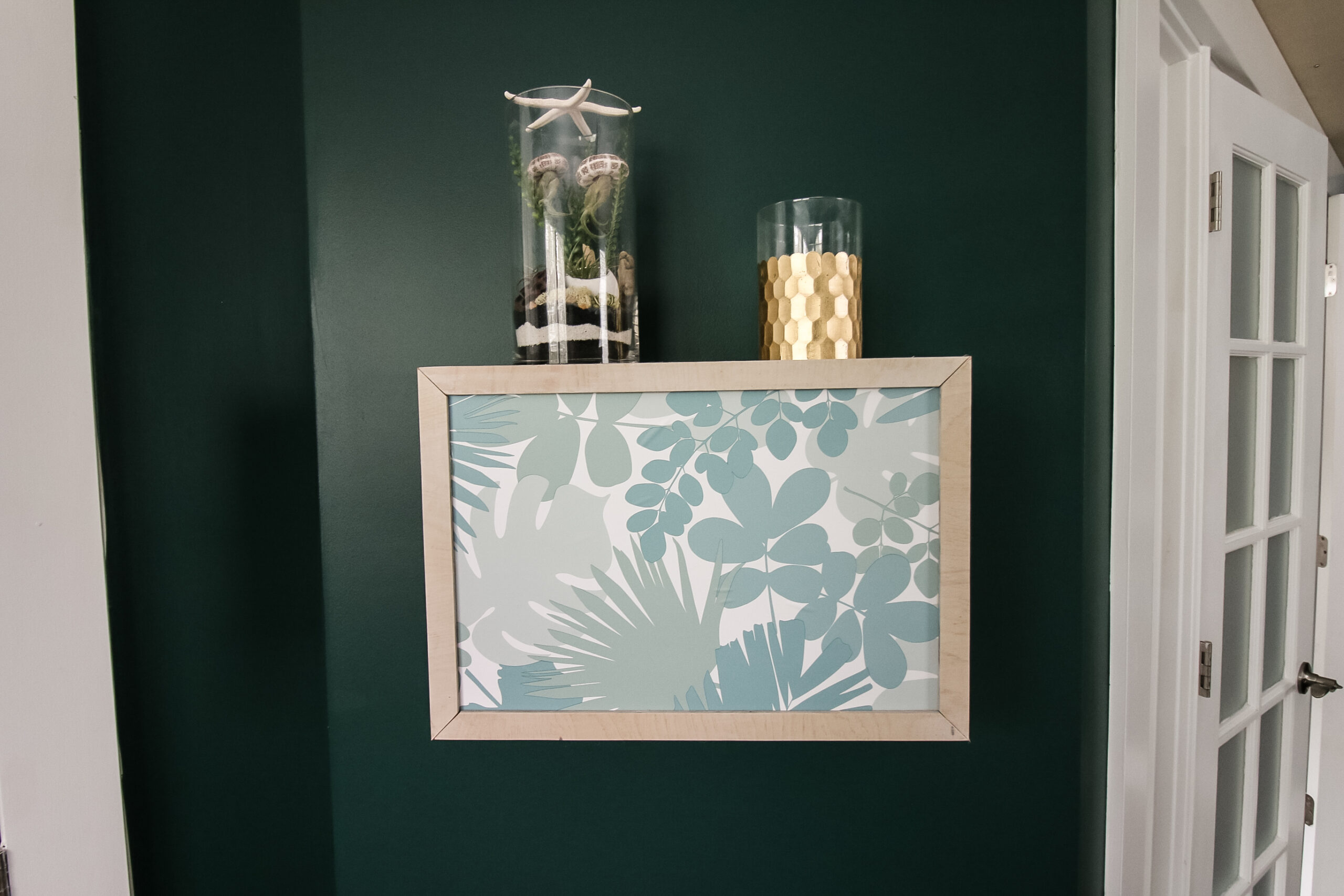

Finished DIY wall-mounted fold-down vanity closed

Now, the fold-down vanity is concealed during day-to-day non-use, but is easily opened up when our guests are in town!

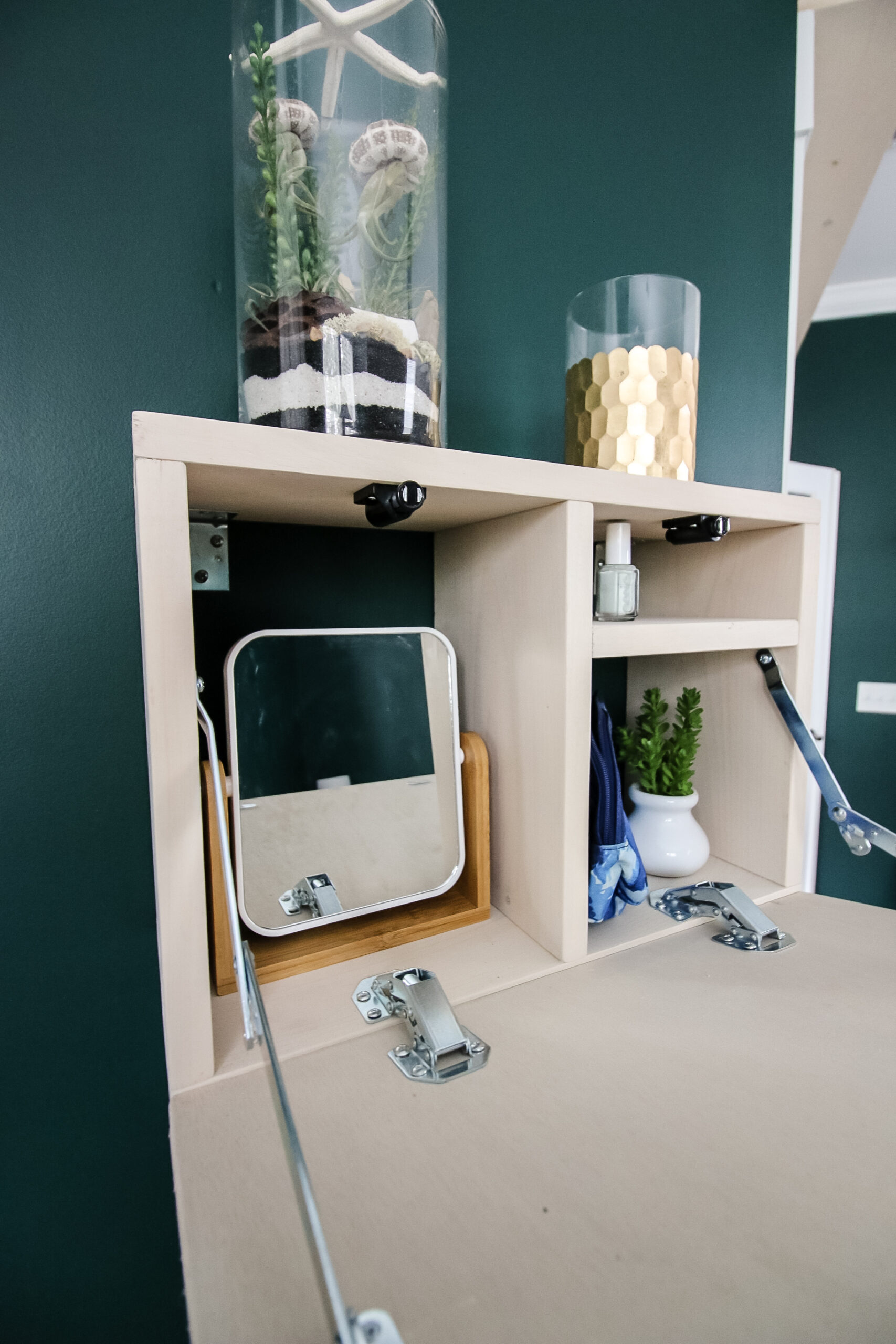

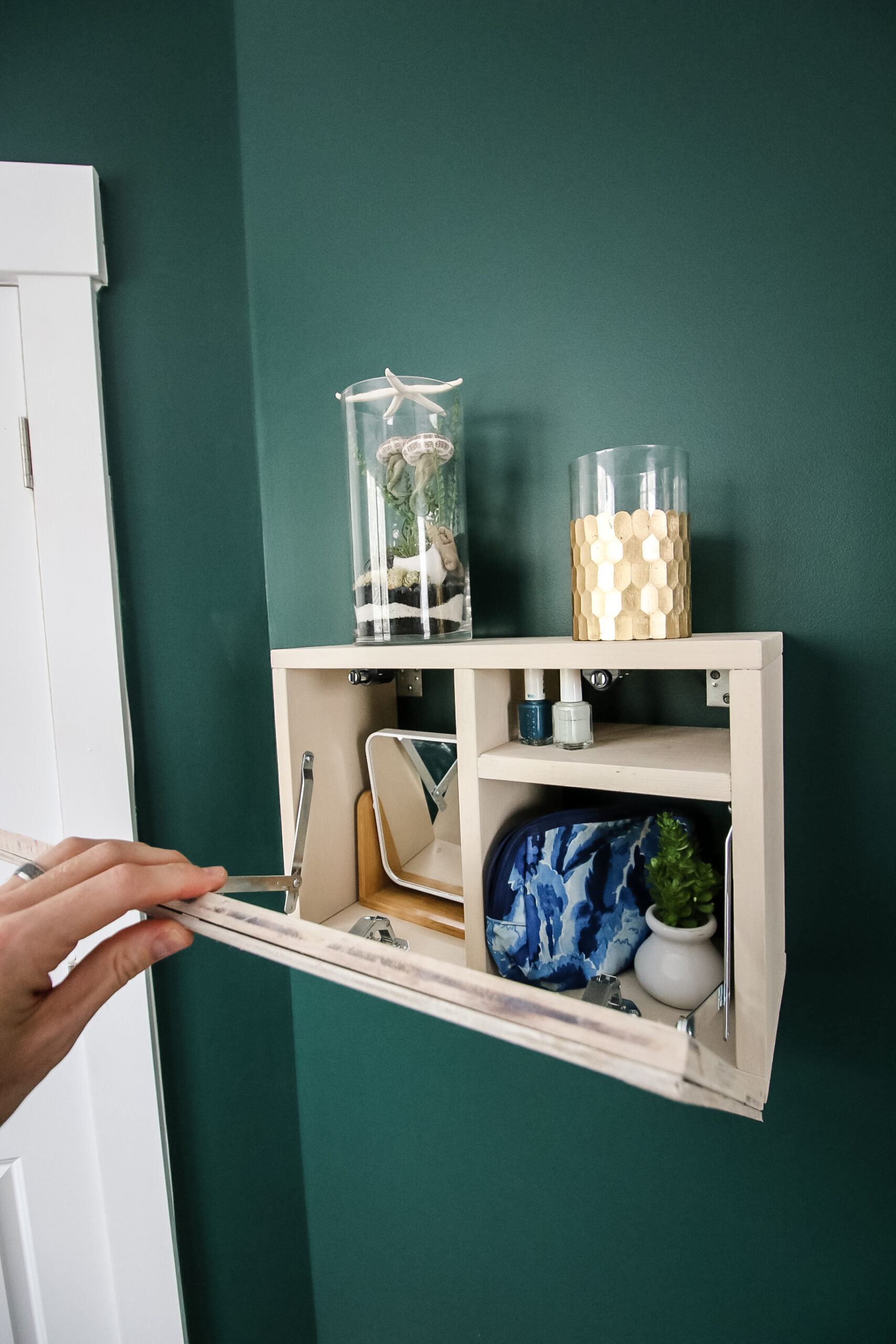

Opening fold down vanity

We put in a double sided vanity mirror to the inside for our guests, but the rest of the space will be available for them to put their stuff.

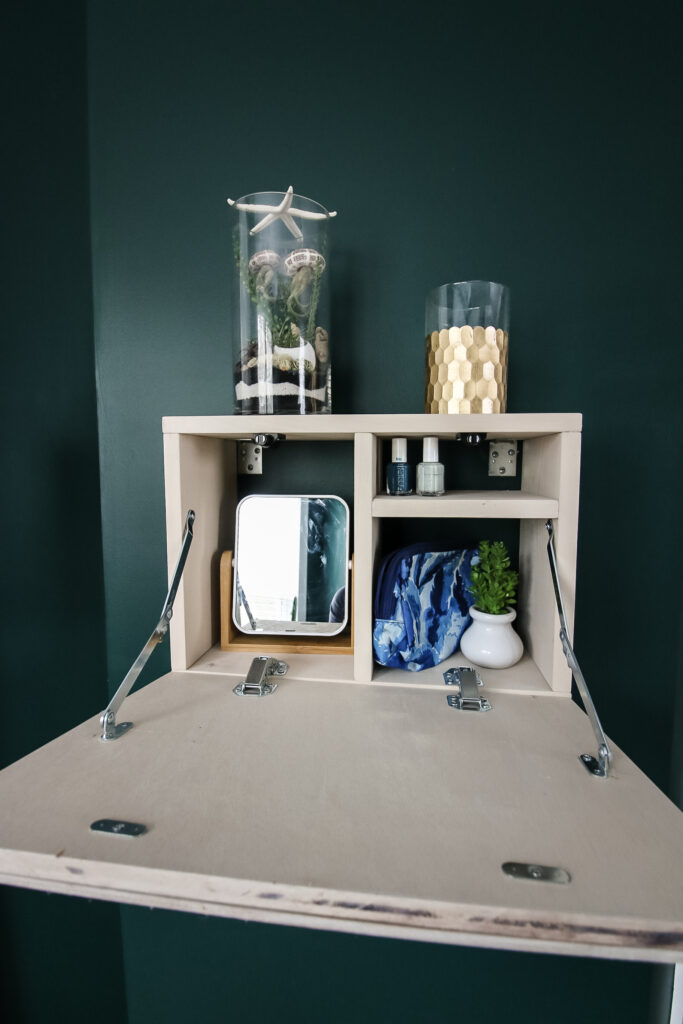

Inside of completed wall-mounted fold-down vanity

We love how this turned out and how nice it looks up on the wall. It’s super convenient and suits exactly what we needed!

Free woodworking plans to build our DIY wall-mounted fold-down vanity!

Love this project and want one of your own? Inside of the National Hardware Made By Me Fold Down Wall Organizer Kit, they have free, simple woodworking plans to help you build this space saving fold-down vanity yourself!

Completed wall-mounted fold-down vanity

This is a great project if you live in a small space or have guests that need a place to get ready, just like us.

Any questions about this project or the National Hardware Made by Me Fold Down Wall Organizer Kit?!
