How to Make a Tub Bench

This post may contain affiliate links, which means that we earn a small percentage of each sale. As an Amazon Associate I earn from qualifying purchases.

We recently built a simple tub bench for using while bathing our son. We were squatting or kneeling in the guest bathroom tub and it was uncomfortable. By adding a tub bench, we can sit and take pressure off our joints. This tub seat is customizable if your tub is not standard width. If you need your own shower seat, this will work as well as long as you have two sides to prop the seat on.

Tub Bench

Tub Bench - Charleston Crafted

I started by measuring the tub. It’s a fairly standard shower/tub combo, but make sure to measure for your tub bench first.

I measured from the edge of the tub to the wall, being careful to take any curved areas into consideration.

My whole bench is 28″ wide. I used 1″ thick cedar for this project because cedar holds up well in areas of high moisture.

Makes a lot of sense for a tub seat.

Cuts

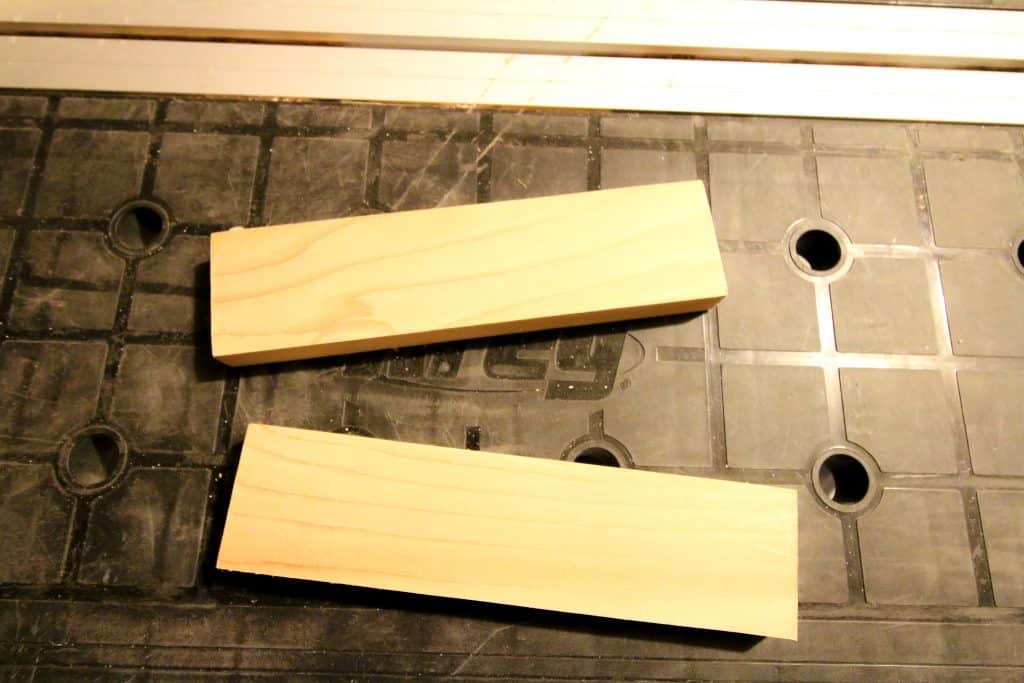

First cut two 8″x2″ pieces for the sides.

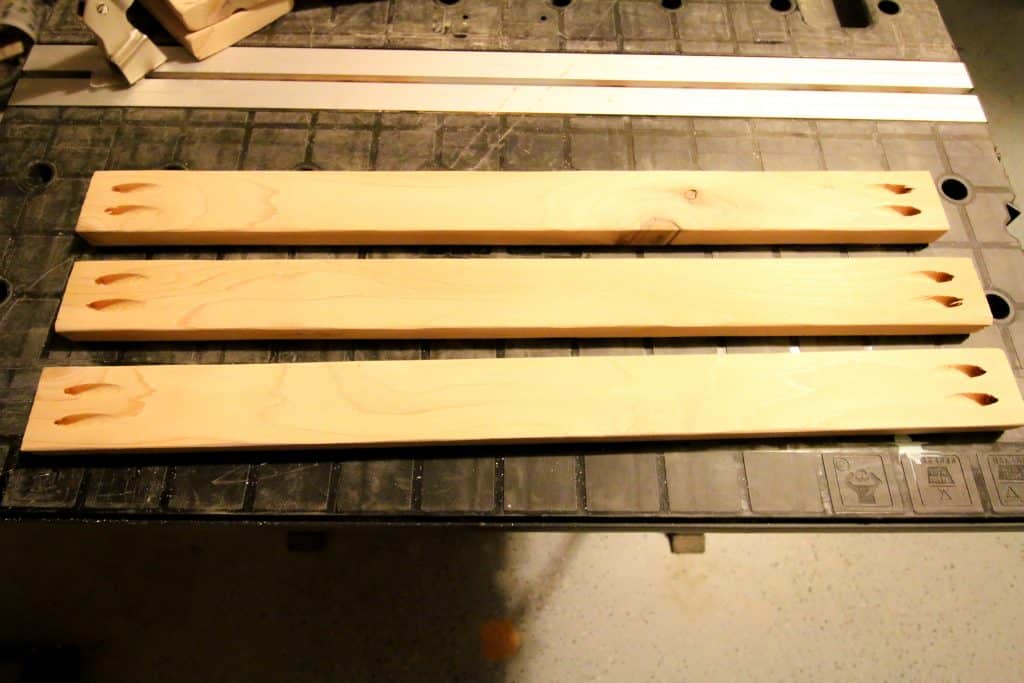

Then, cut three 24″x2″ pieces for the slats. Add two pocket holes to each end.

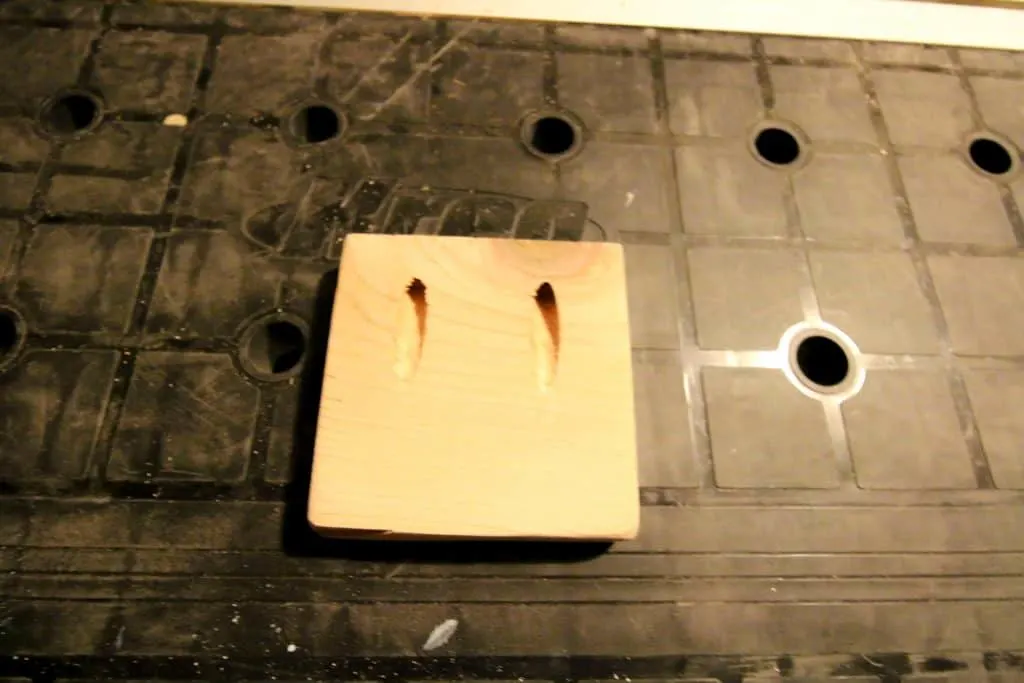

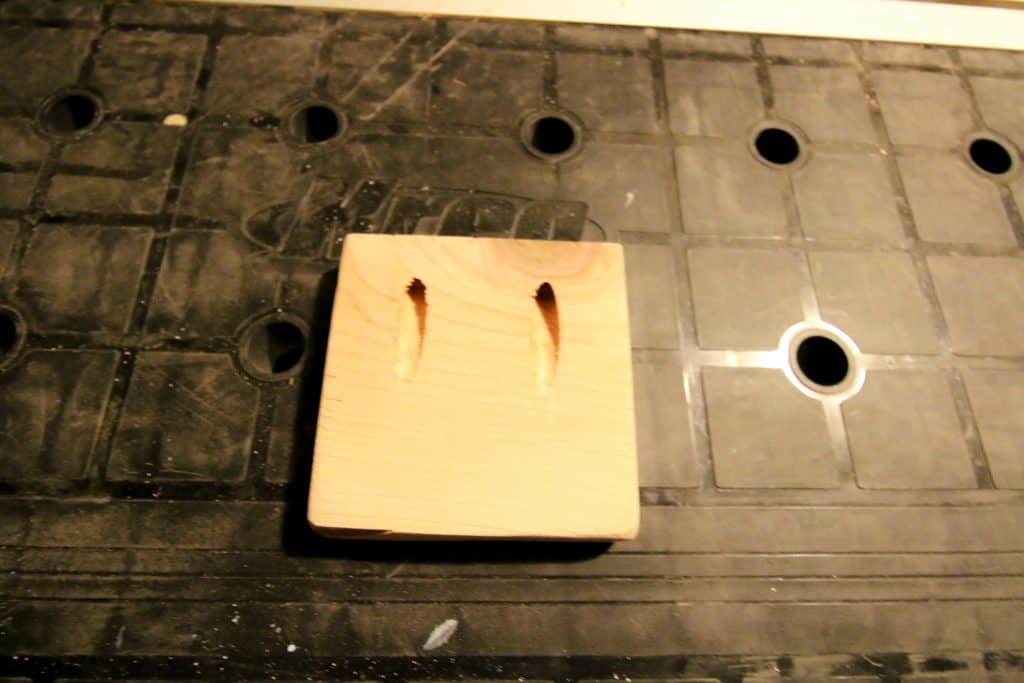

Finally, cut one 4″x4″ support piece to hold the seat in place against the wall of the tub. Add two pocket holes to one side.

Tub Bench - Charleston Crafted
Tub Bench - Charleston Crafted
Tub Bench - Charleston Crafted

Assembly

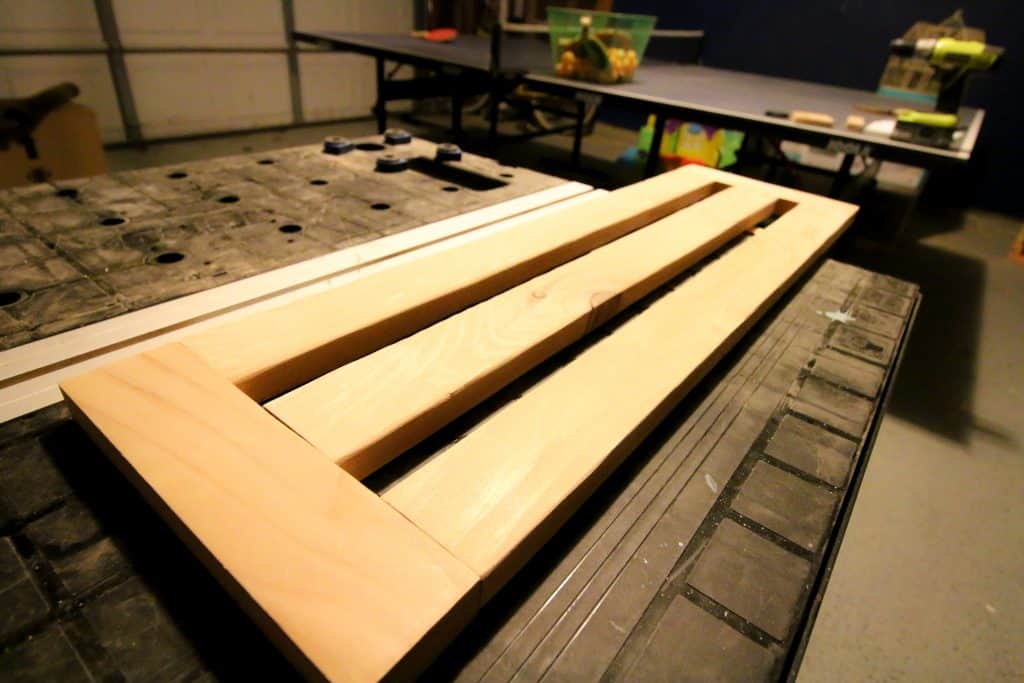

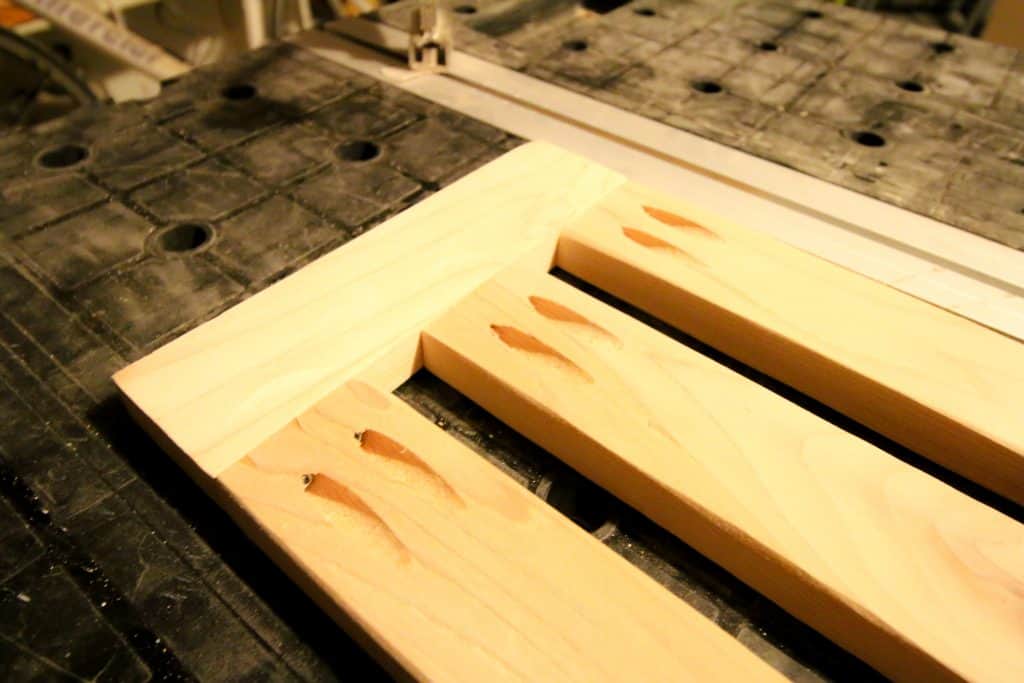

Start by attaching a slat flush with each end of the side pieces. I used Kreg Jig pocket holes to attach them to make sure it was secure since I’d be sitting on it.

I then added another slat in the middle with a one inch gap.

Tub Bench - Charleston Crafted
Tub Bench - Charleston Crafted

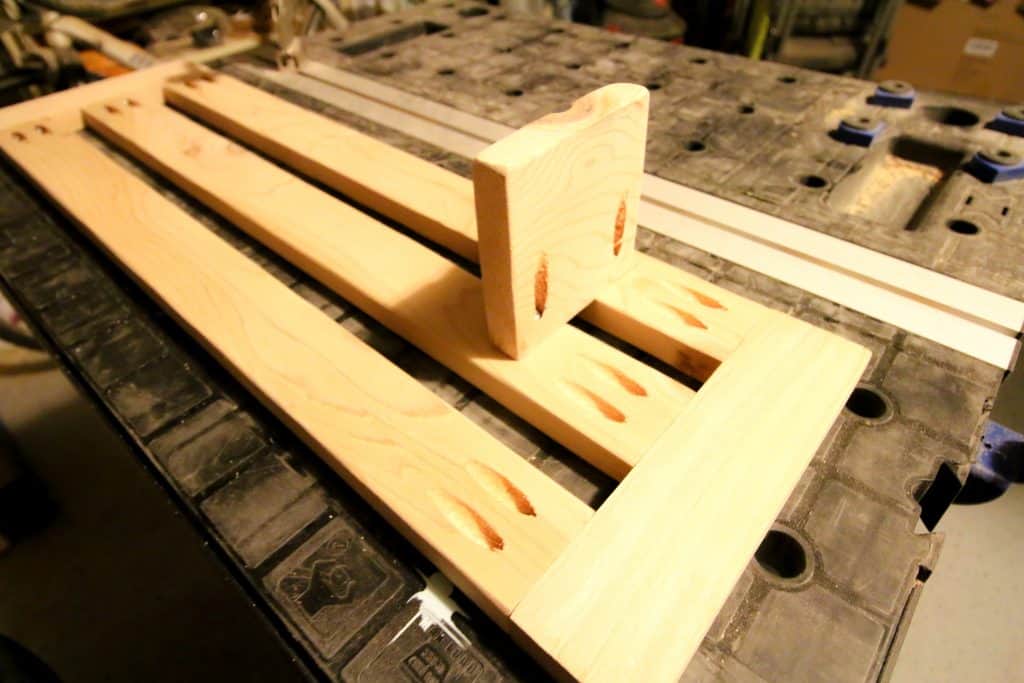

Once the top was built, I took it up to the tub to verify the placement of the support piece. I again used pocket holes to firmly attach this piece to the underside of the bench.

Tub Bench - Charleston Crafted

Even though it was cedar, I decided to finish off the whole thing with a coat of spar urethane for added protection.

Finished Product

Tub Bench - Charleston Crafted
Tub Bench - Charleston Crafted

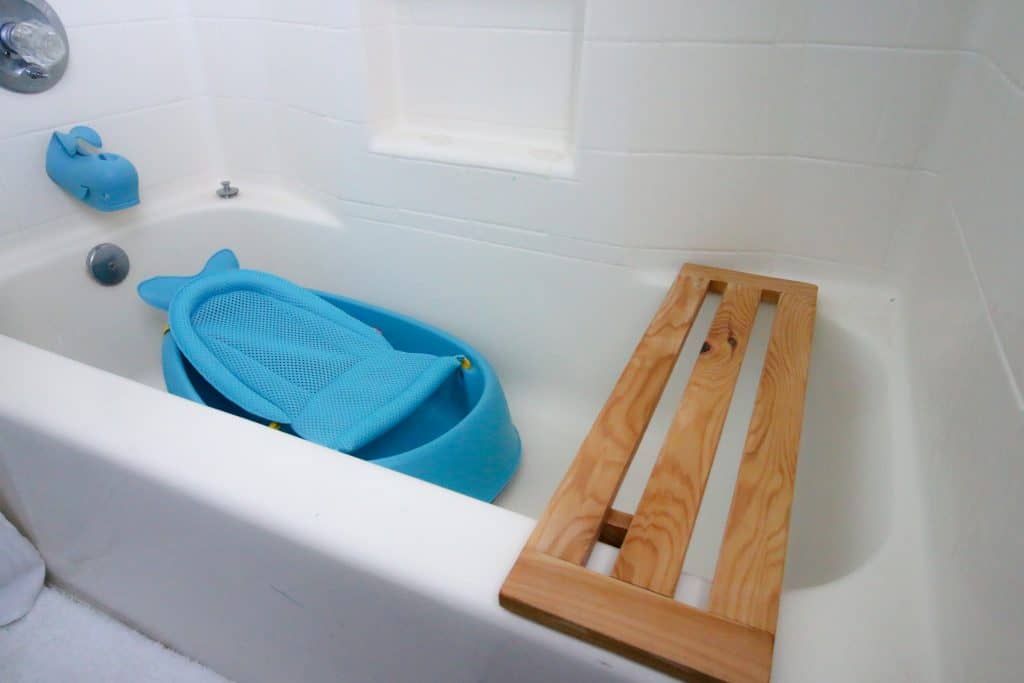

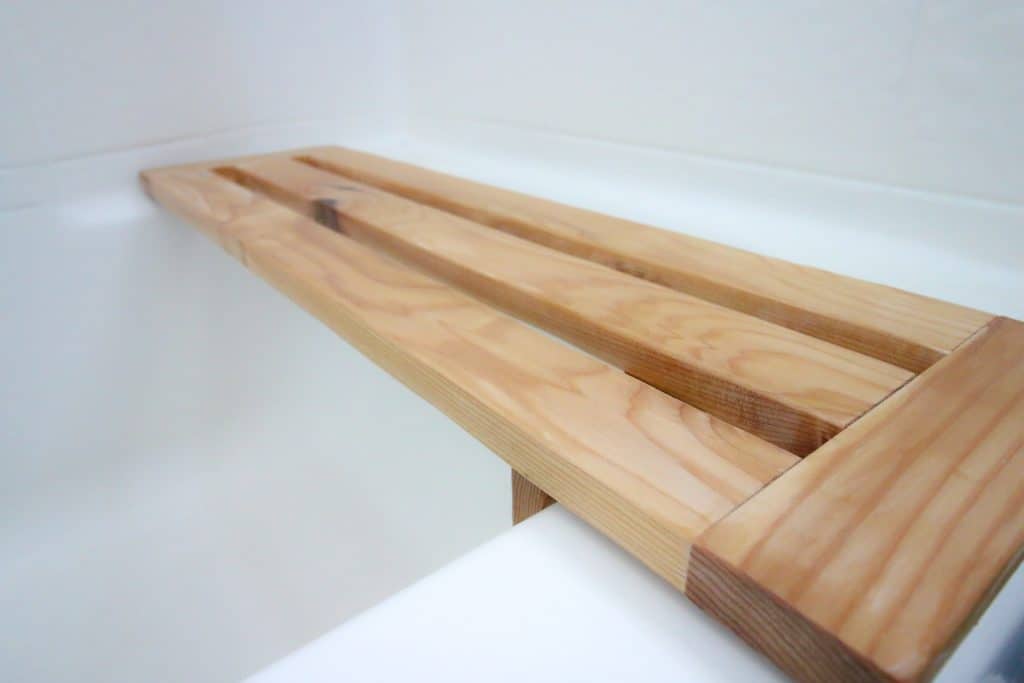

The bathtub bench turned out great!

Tub Bench - Charleston Crafted

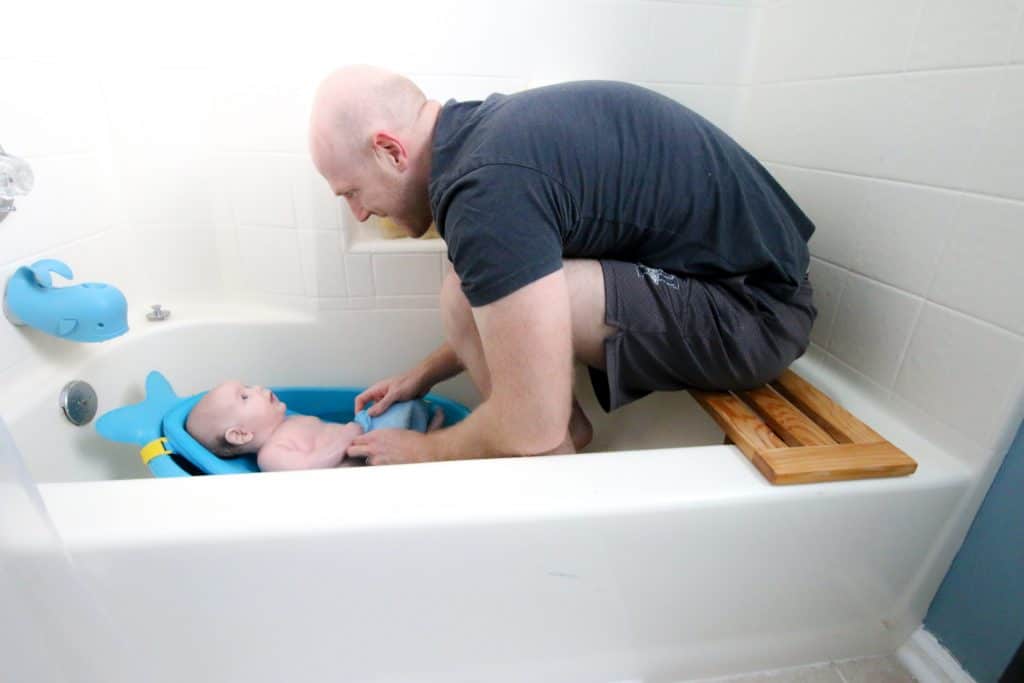

I love that this is a removable tub seat that we can take out when guests use the shower. For us, this tub bench is perfect for sitting on when bathing our child in his baby tub.

Want to build a free standing seat for a shower? Get our free plans to build a DIY shower stool!

Interested in the Kreg Jig? Click here to read our full Kreg Jig review and to see all of our Kreg Jig projects.

New to the Kreg Jig? Here is a step by step guide on how to use a Kreg Jig!
