Our Complete Pantry Remodel – How to build pantry shelves

This post may contain affiliate links, which means that we earn a small percentage of each sale. As an Amazon Associate I earn from qualifying purchases.

Wondering how to build pantry shelves? You will love this simple DIY tutorial!

It’s funny how far a few complaints and “subtle” aggravation can go.

We aren’t planning to remodel our kitchen until spring, but one of our biggest problems in the house has been our pantry.

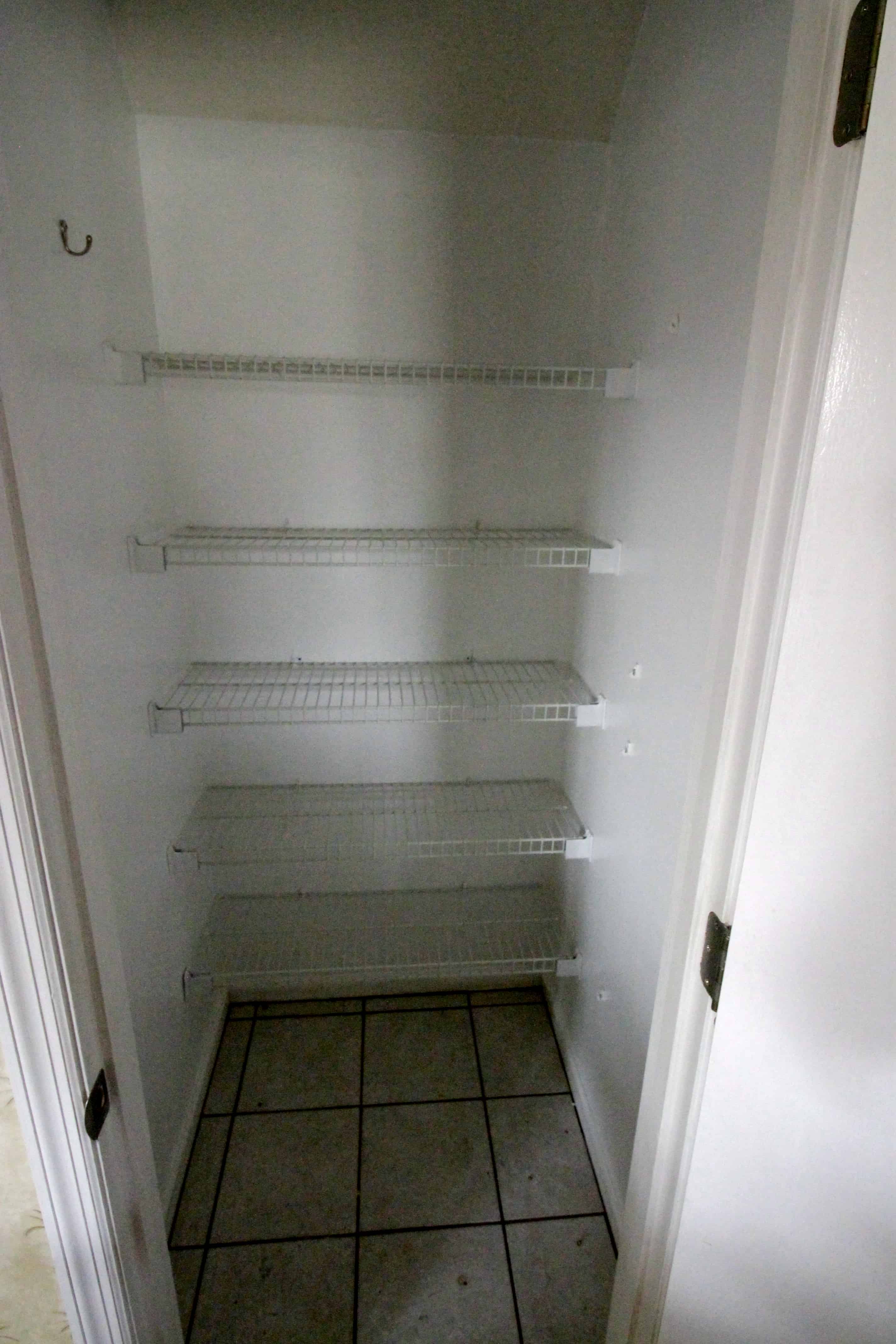

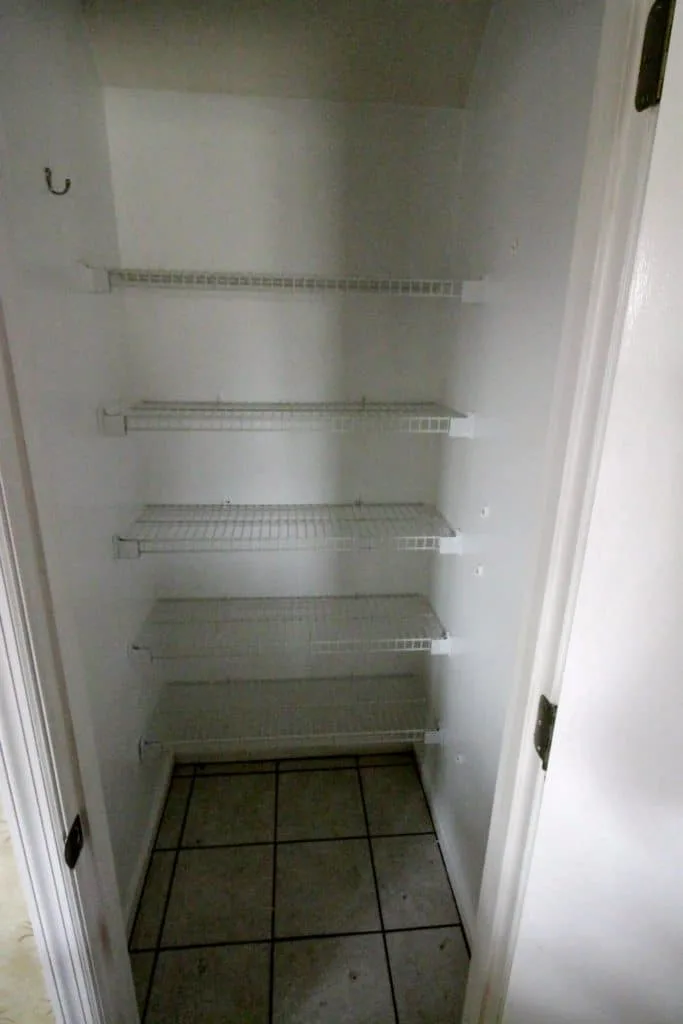

The pantry was full of shallow wire shelves and when we moved in all we did was just cram our food in there.

That led to frustrations whenever we were looking for something we needed to cook with or when we realized we had just bought a box of something we already had but couldn’t see before.

So, we decided to put that to an end and go ahead and remodel our pantry now.

Our Complete Pantry Remodel - Charleston Crafted

Our big goal for our new pantry was to create a custom storage solution that we could organize what we had, but also create more space for the future.

Back in the condo, we created a custom pantry and ripped out the wire shelving there too.

We wanted to go with the same plan and do wooden shelves with wooden railings to hold them up.

Since this pantry is wider and deeper, we knew we’d also be able to add some storage to the side walls as well.

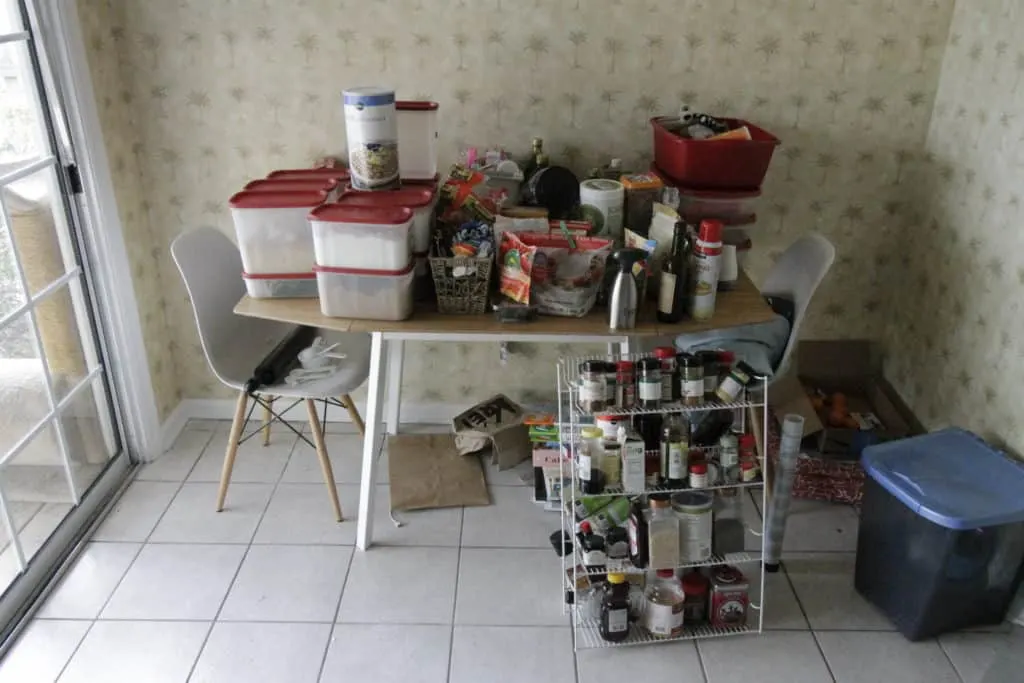

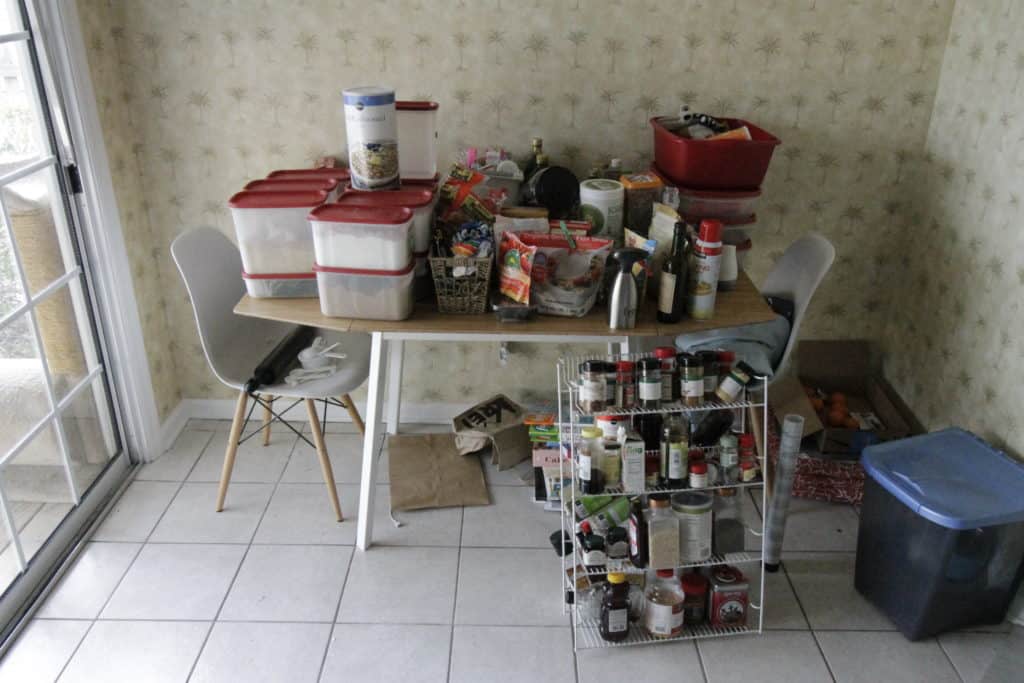

But in order to do anything, I had to start with demo. That included taking out all the food then ripping out all the old shelving.

Our Complete Pantry Remodel - Charleston Crafted
Our Complete Pantry Remodel - Charleston Crafted
Our Complete Pantry Remodel - Charleston Crafted

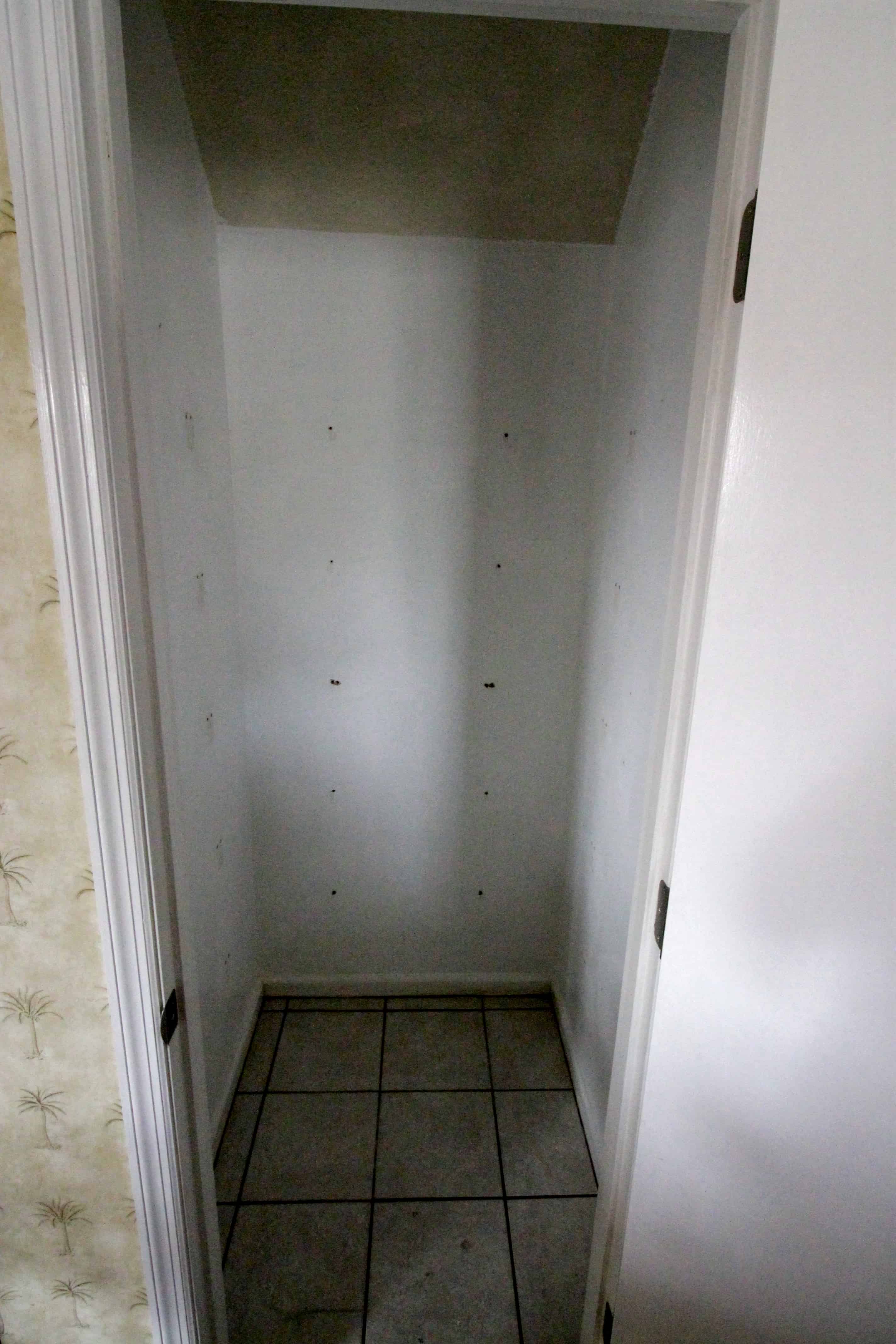

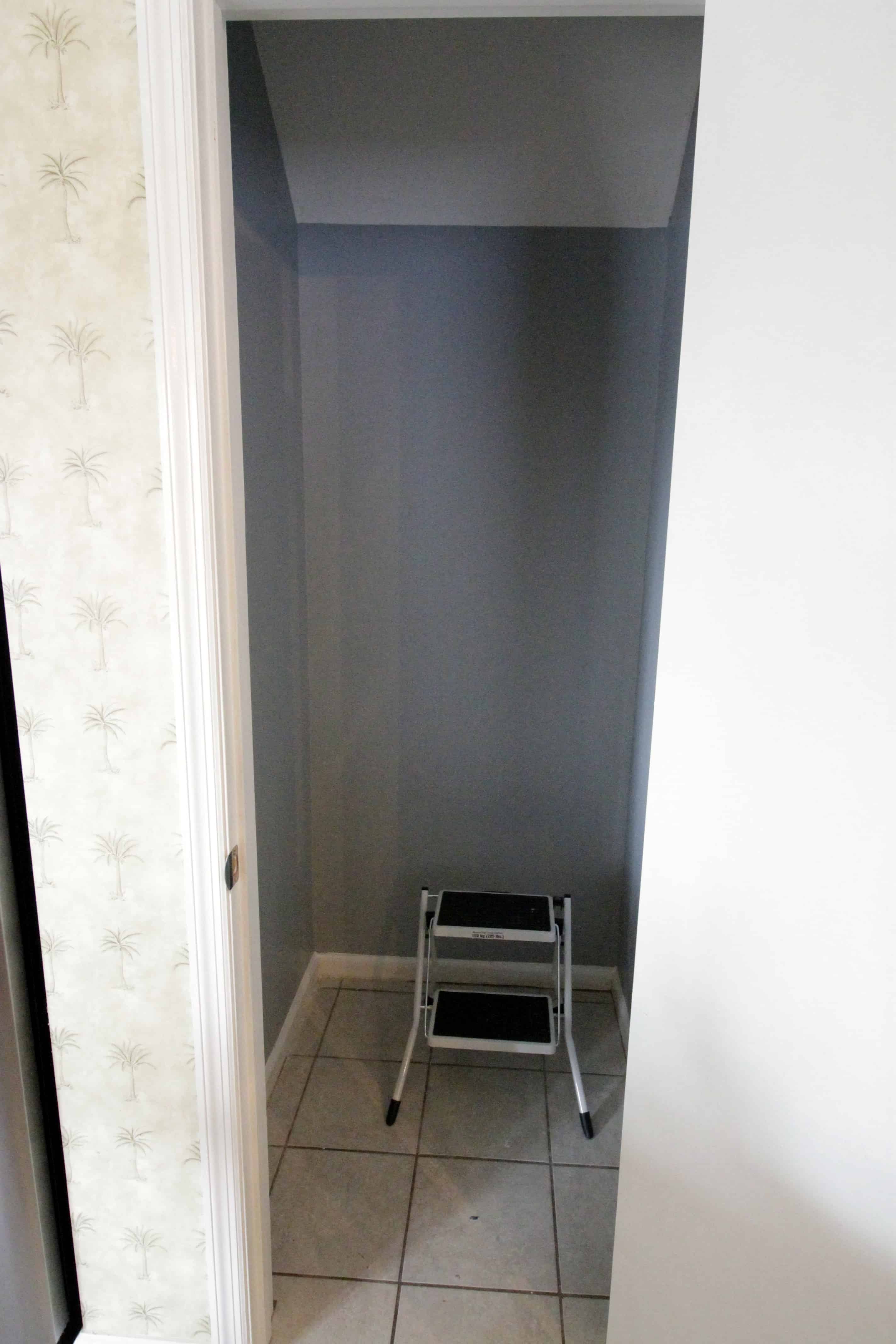

Then, I patched all the holes from the wire shelving’s screws with spackle and then painted the walls with the same grey that we used in the front room and dining room.

We plan to take it throughout the downstairs.

Our Complete Pantry Remodel - Charleston Crafted
Our Complete Pantry Remodel - Charleston Crafted

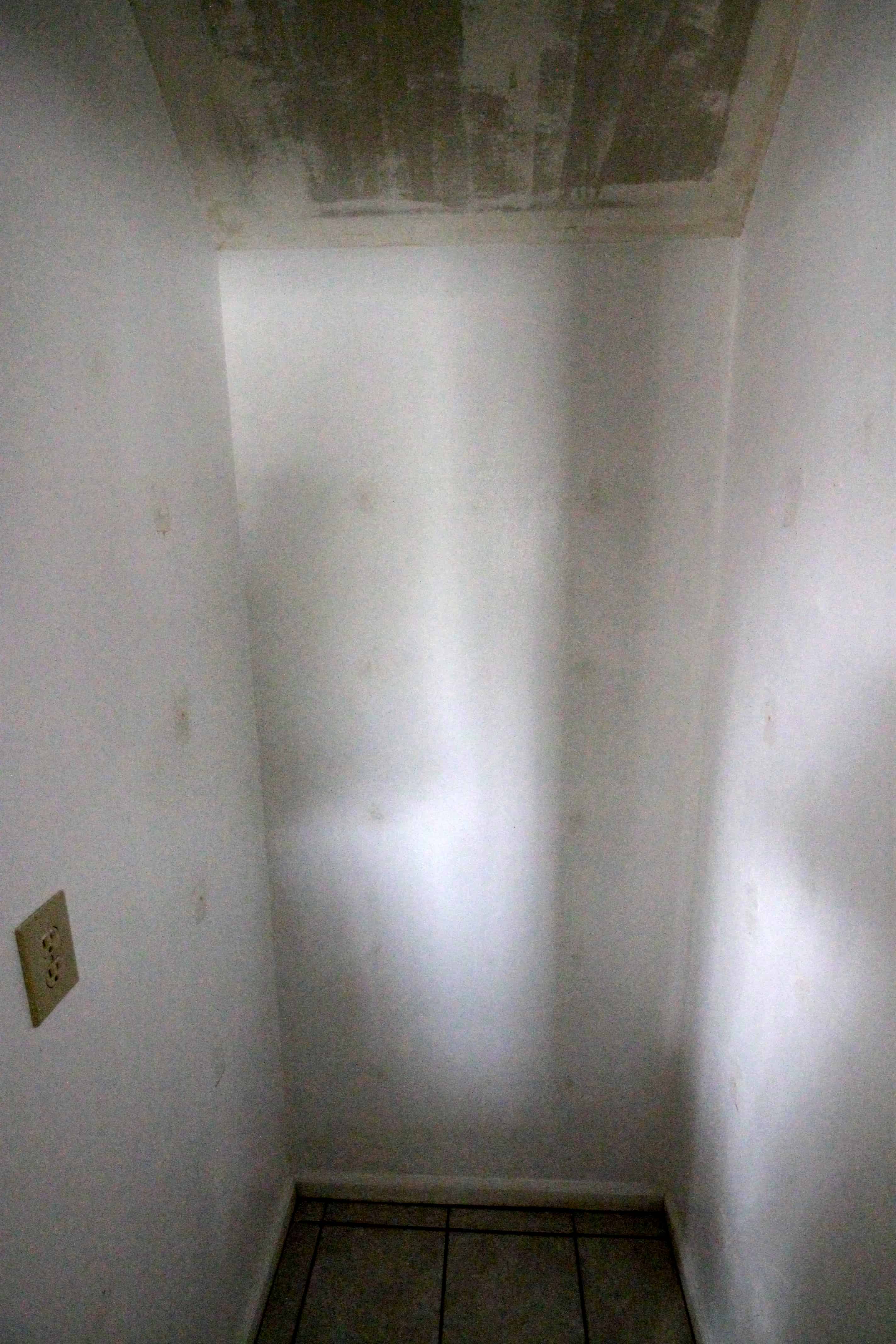

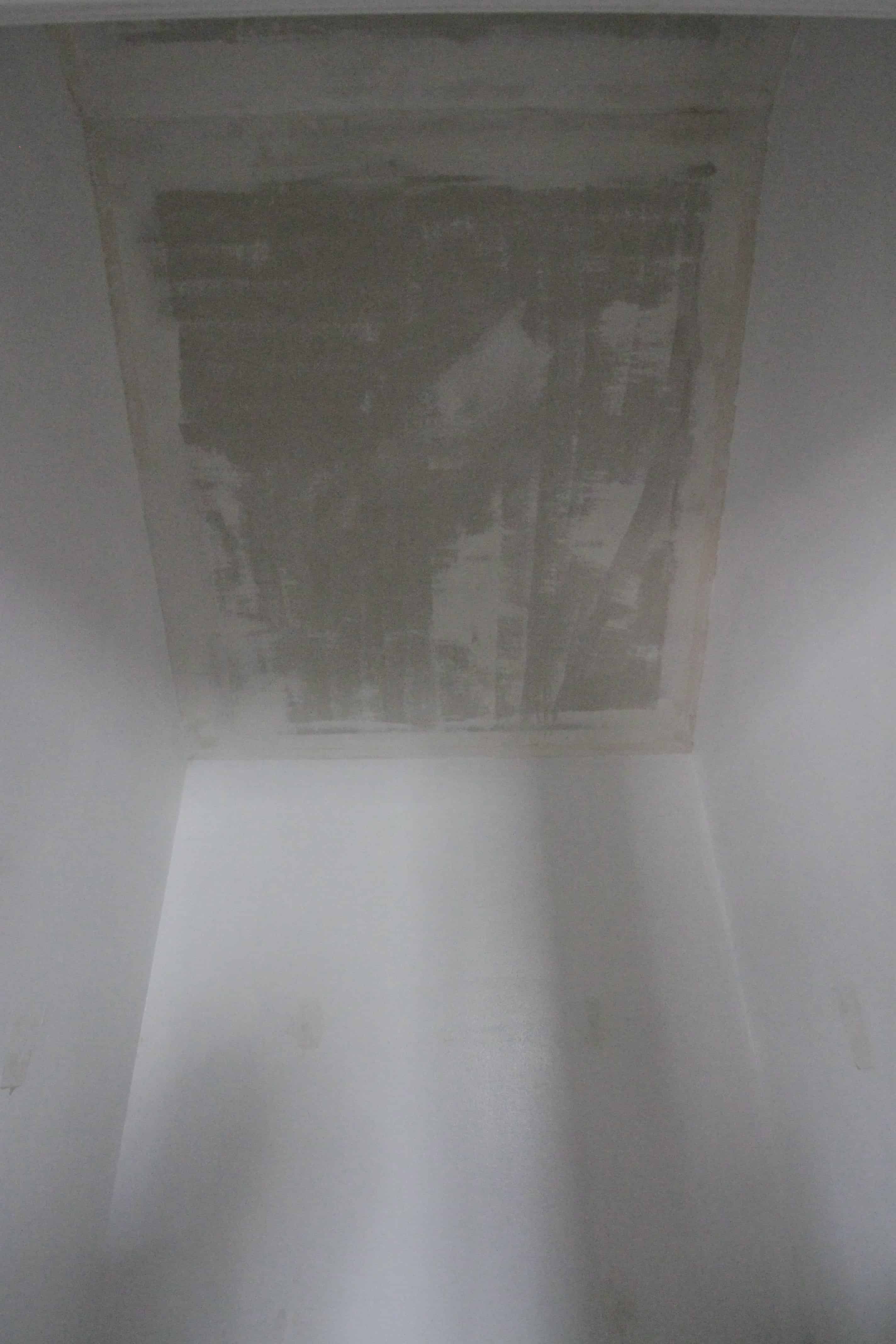

I also got to get back into the swing of scraping popcorn ceilings! Super fun. Haven’t done that since we did our master bedroom.

Our Complete Pantry Remodel - Charleston Crafted

Once everything was all painted, it was time to reconstruct.

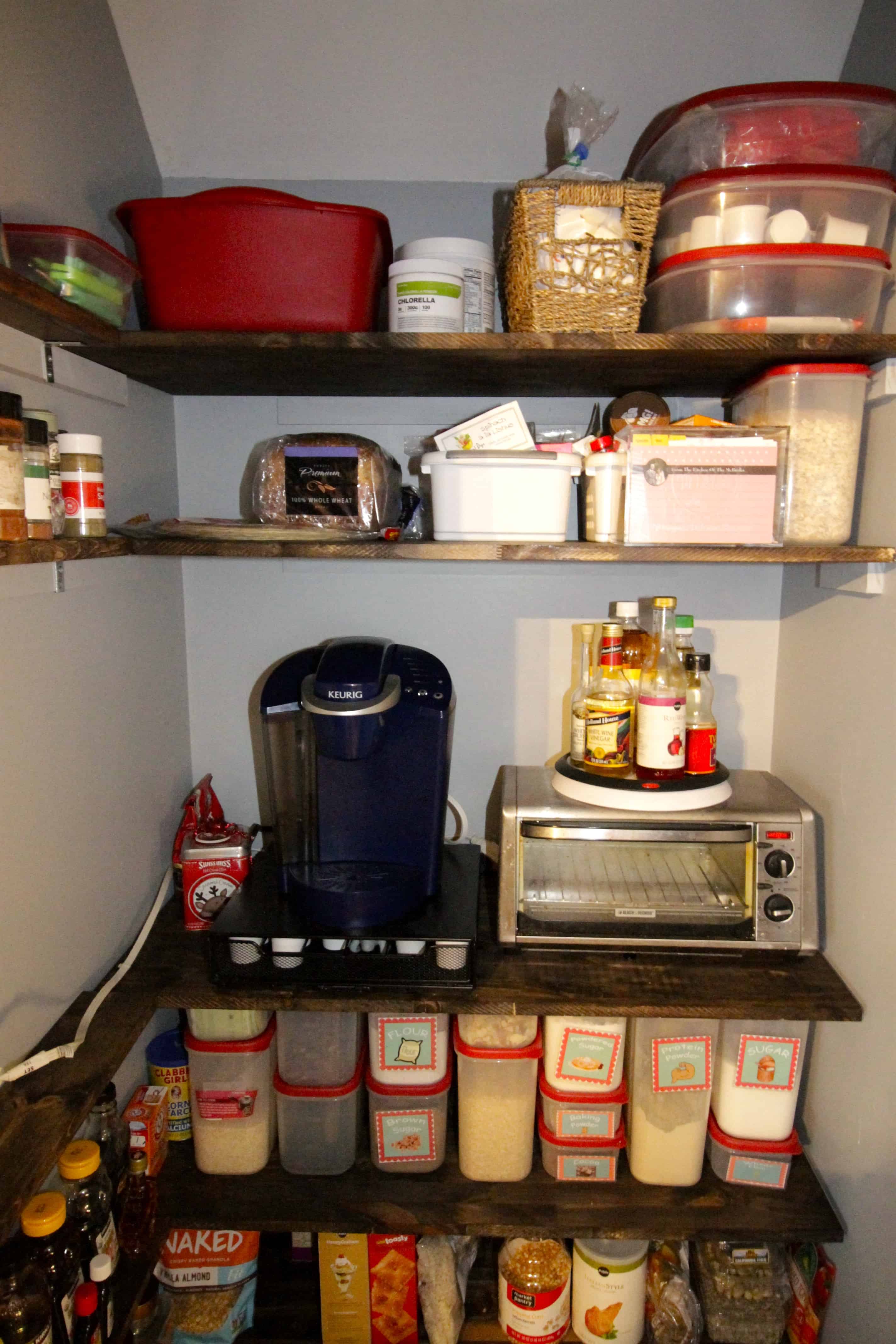

We designed a layout with the proper spacing we wanted in between each shelf. With that, we took things into account like a tall shelf in the middle where we’re going to keep our coffee maker and toaster.

We have an outlet in the pantry and we didn’t have a place to keep those two appliances after we had the walls taken down.

Once the walls were open to the dining room, we didn’t like having the toaster oven and coffee maker be the first thing you saw when you walked into the front door.

Putting them in the pantry tucks them away while still making them readily accessible.

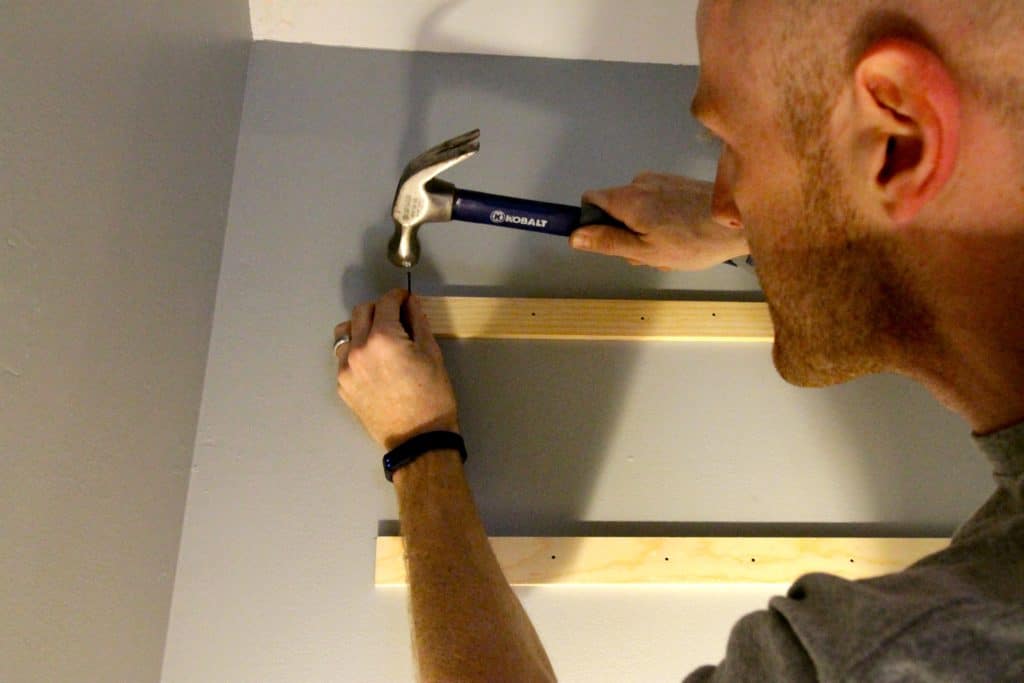

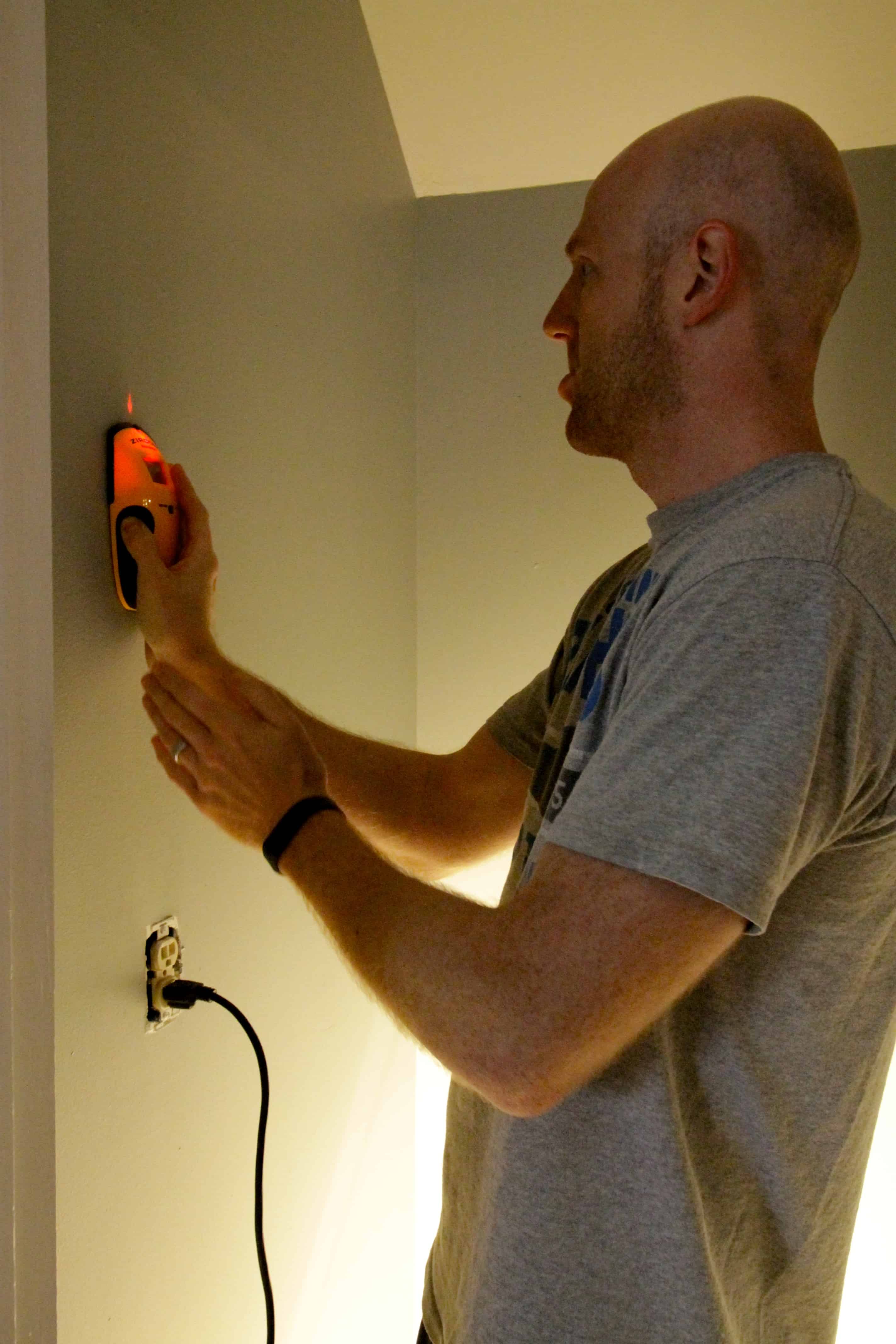

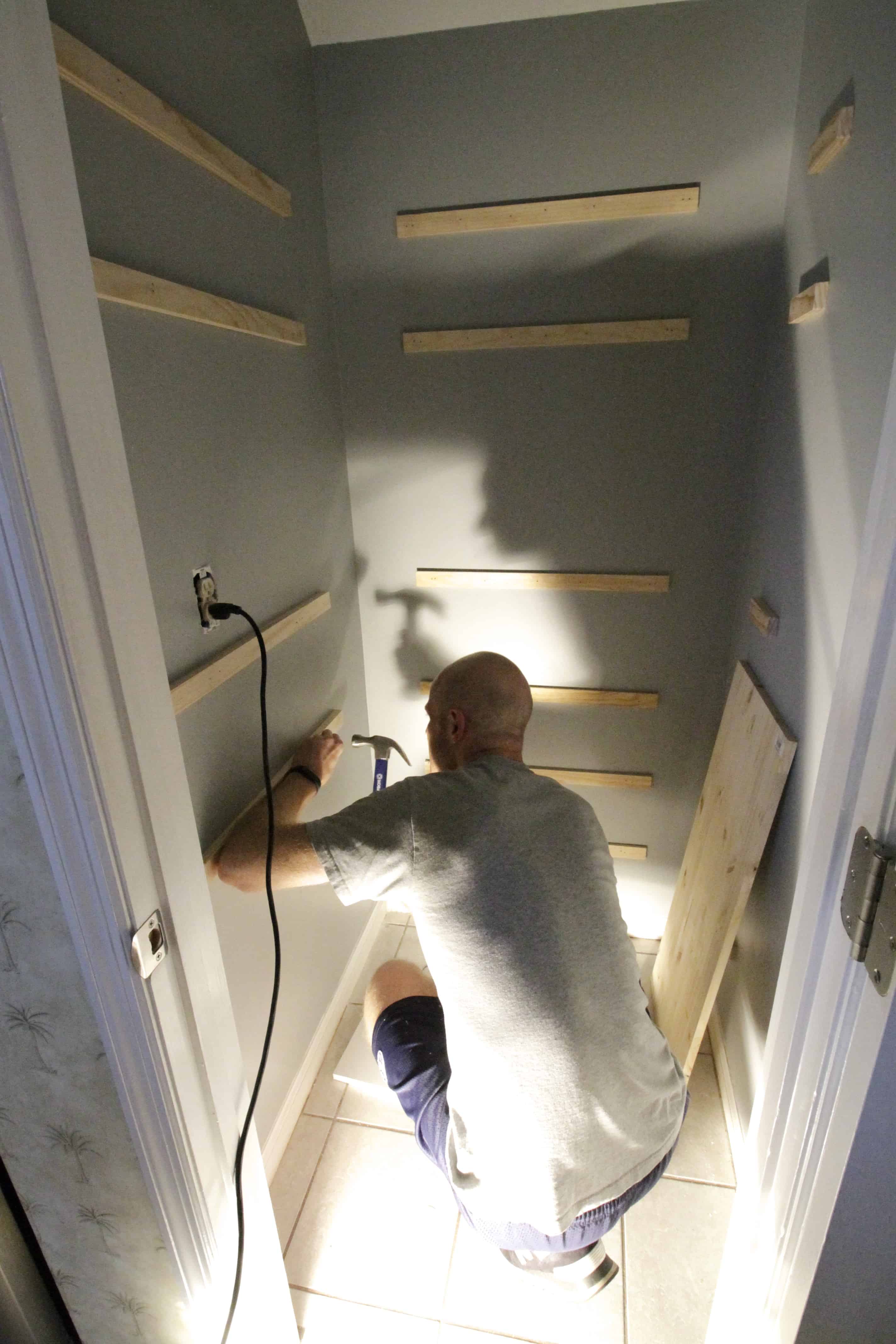

We used 1″ x 2″ boards as the railings for each shelf along the back and sides.

We nailed them up in the “L-shape” we wanted for deep shelves in the back and thing shelves on the side.

Our Complete Pantry Remodel - Charleston Crafted
Our Complete Pantry Remodel - Charleston Crafted

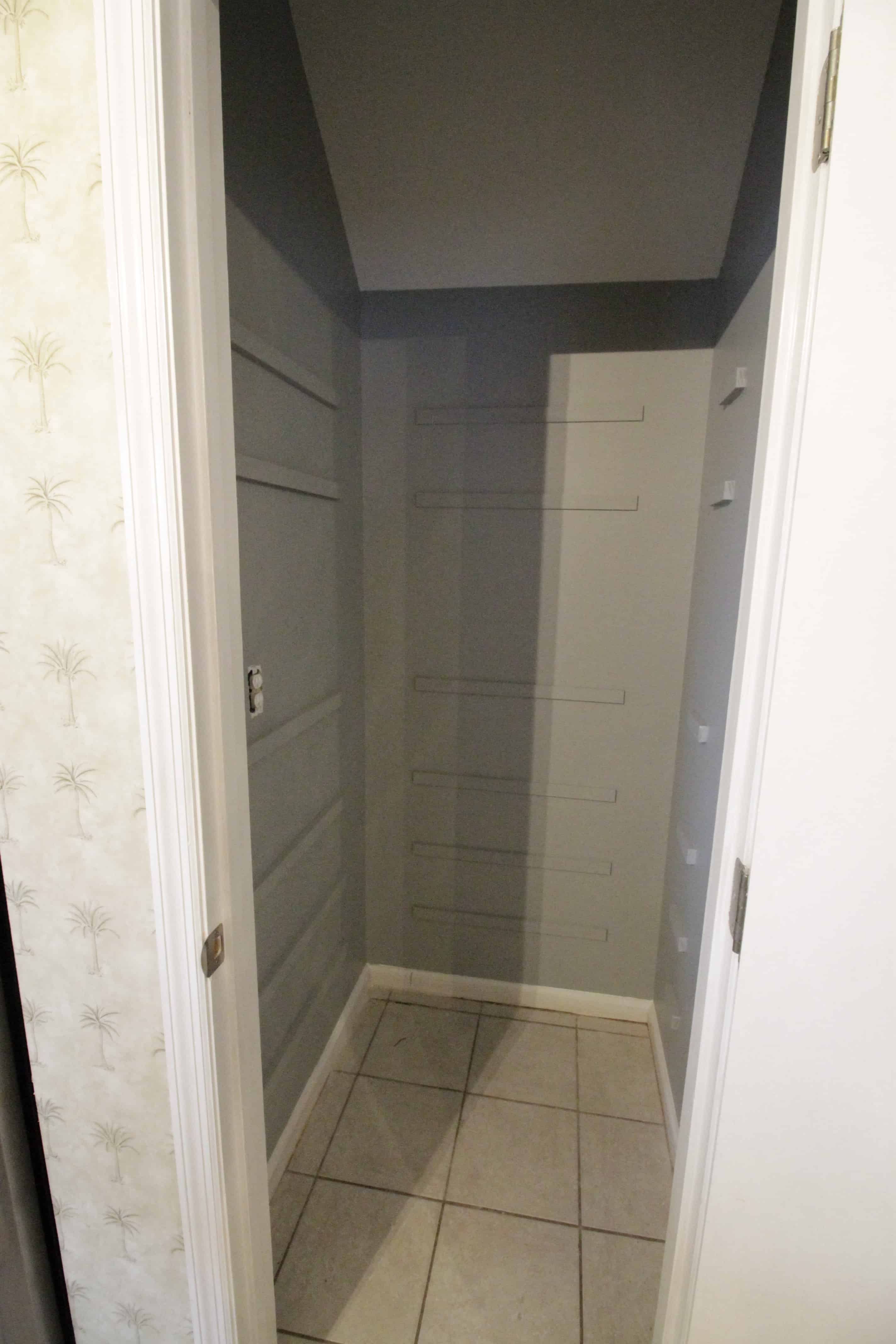

Once all the boards were up, we painted them the same color as the wall to “blend in.”

Our Complete Pantry Remodel - Charleston Crafted
Our Complete Pantry Remodel - Charleston Crafted

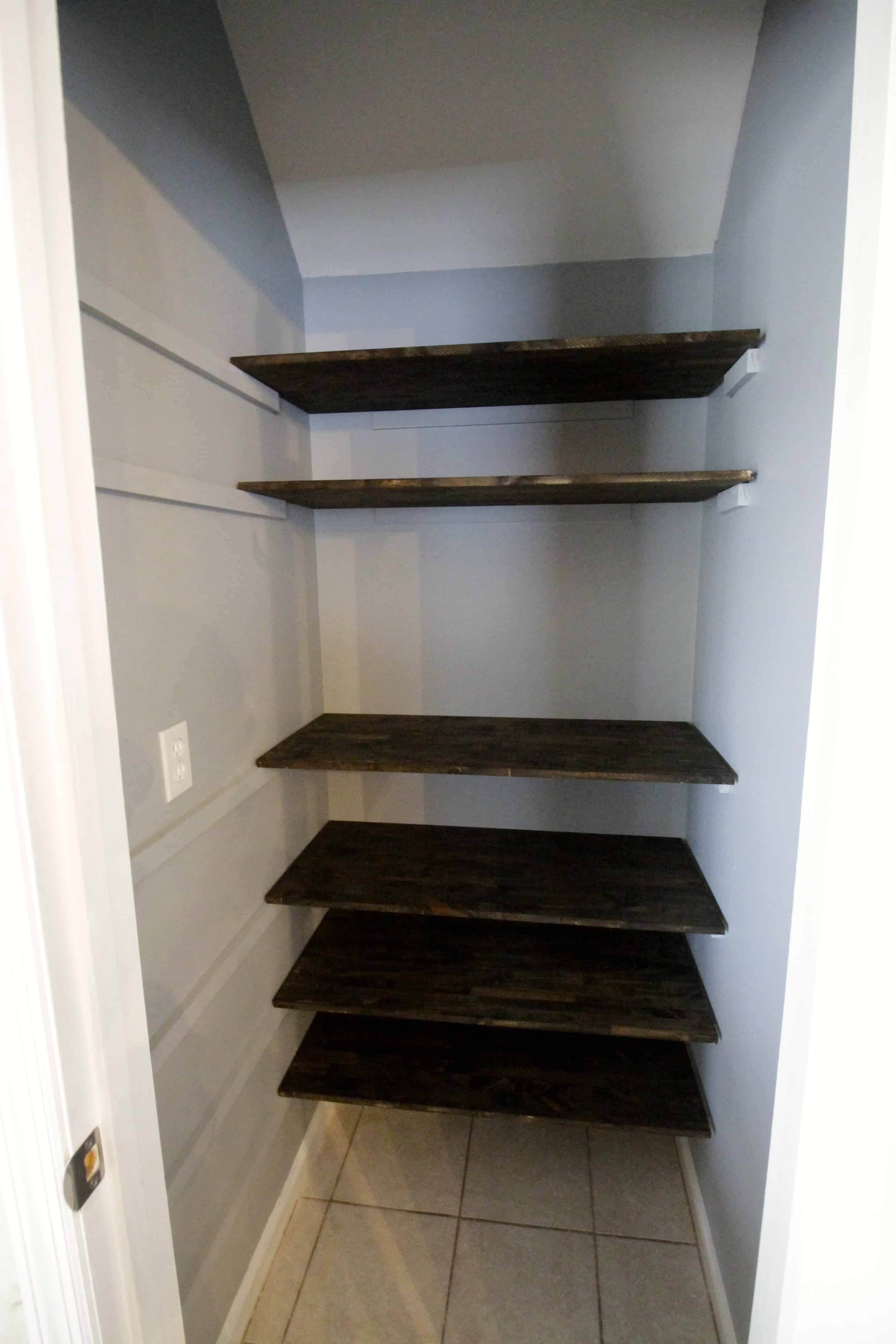

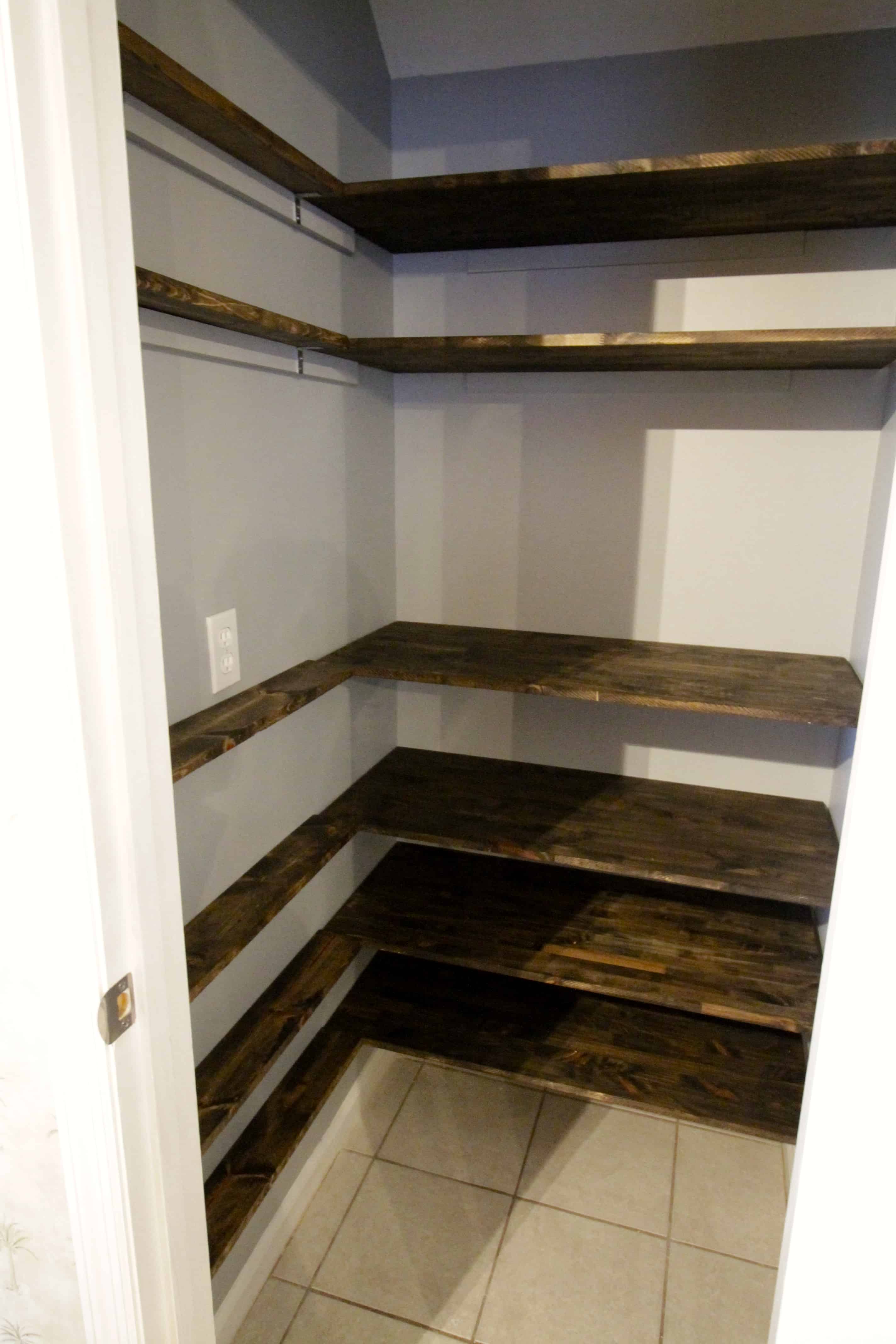

Last thing was the actual shelves.

We used boards that were 1″ thick, 36″ wide, and 16″ deep for the back, and 1″x 3″x 25″ boards for the side shelves.

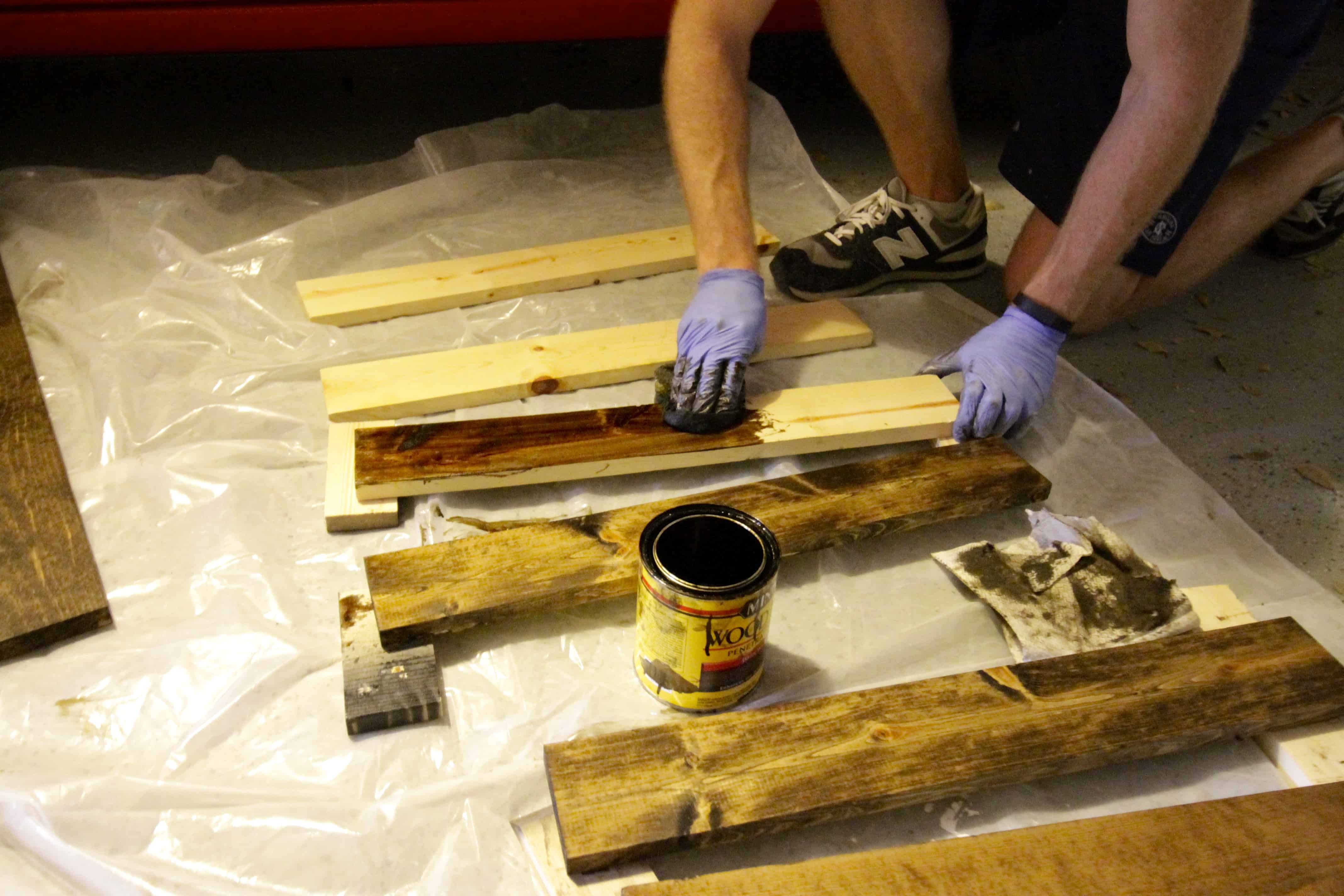

We stained all of these with our favorite Dark Walnut stain to bring out the texture.

The long term plan is to run the laminate “wood” flooring in the kitchen when we remodel, so the shelves will match the floors pretty closely at that point.

Our Complete Pantry Remodel - Charleston Crafted
Our Complete Pantry Remodel - Charleston Crafted

We also added some shelving to the lefthand wall. These are made from 4″ wide boards cut to go from the end of the back wall shelves to the wall next to the door.

This allows for some additional storage about 1 can deep (just over 3.5″ deep). Then, we tossed the shelves up on the railings with no problem.

Our Complete Pantry Remodel - Charleston Crafted

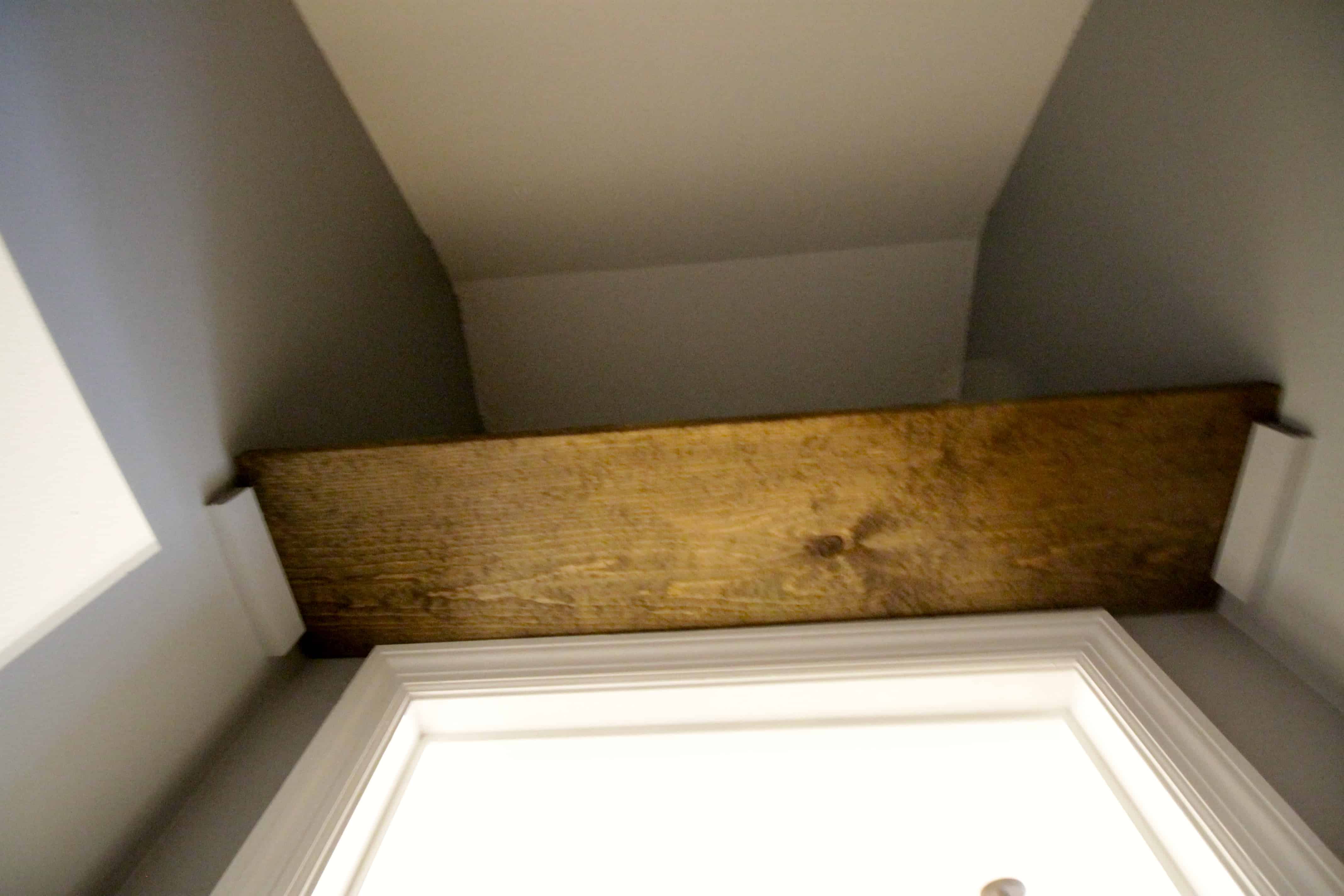

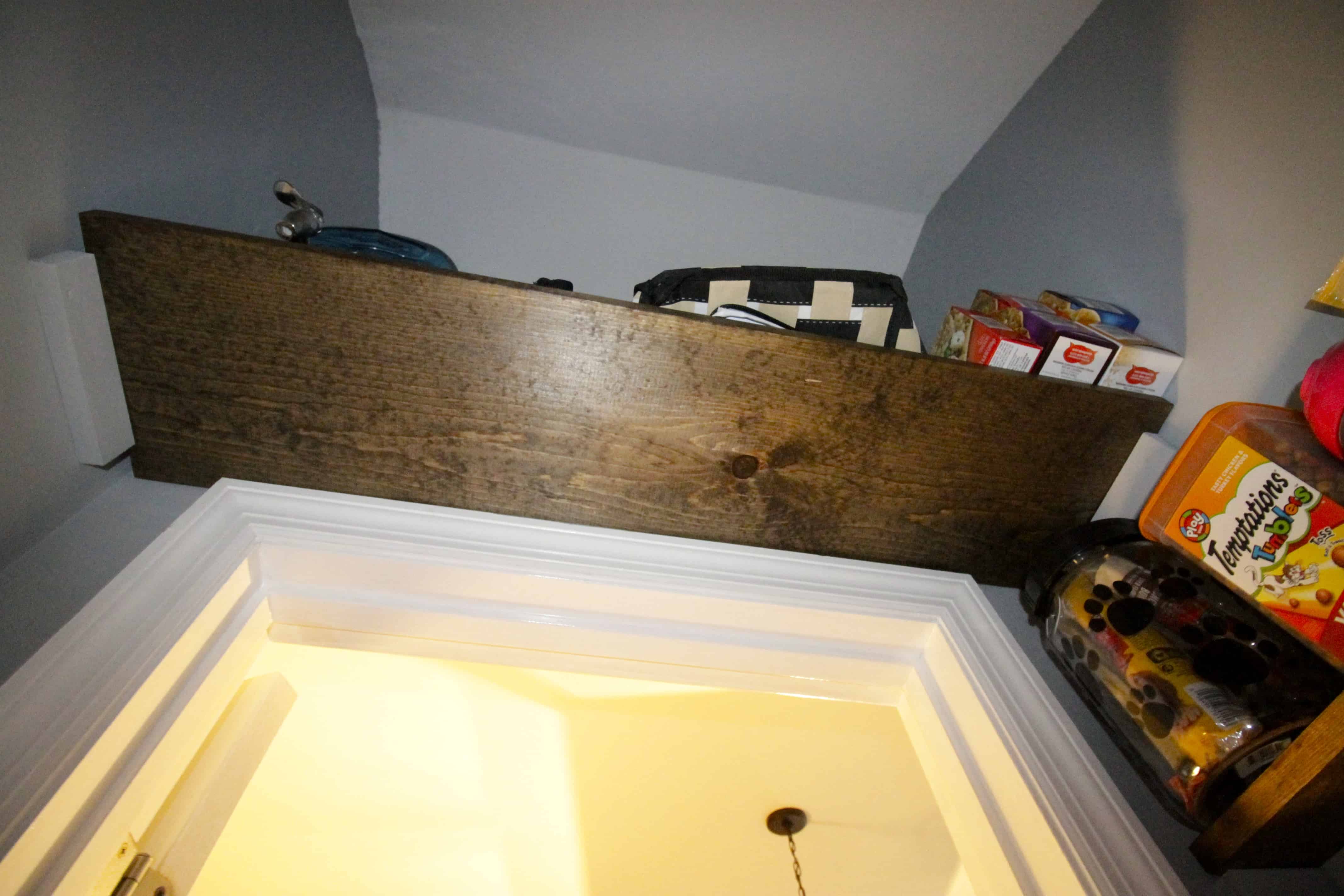

We also added one additional shelf over the door.

It’s hidden when you look in unless you look up, but it’s a little bonus storage for little-used items like a drink canister or soft cooler.

Our Complete Pantry Remodel - Charleston Crafted

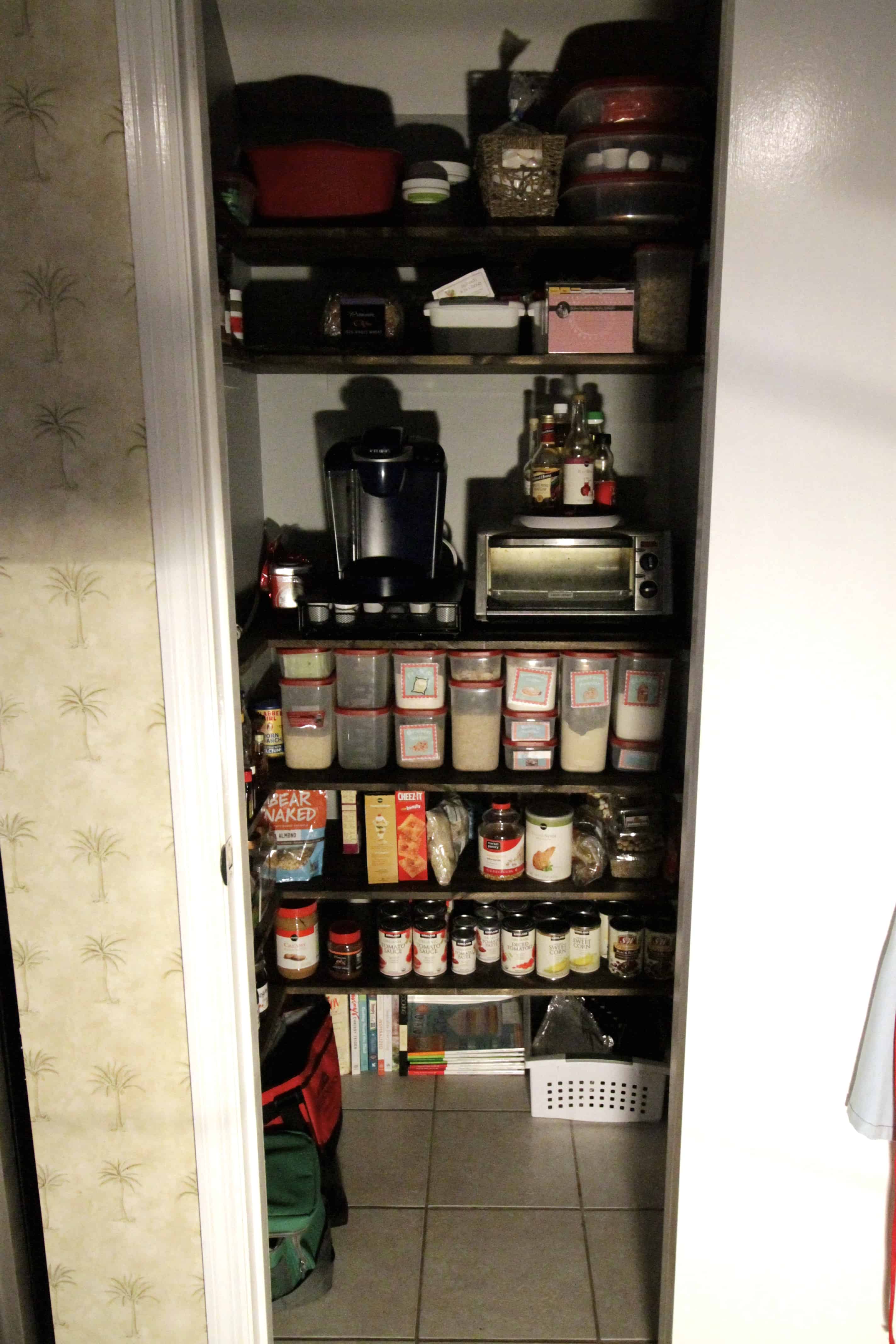

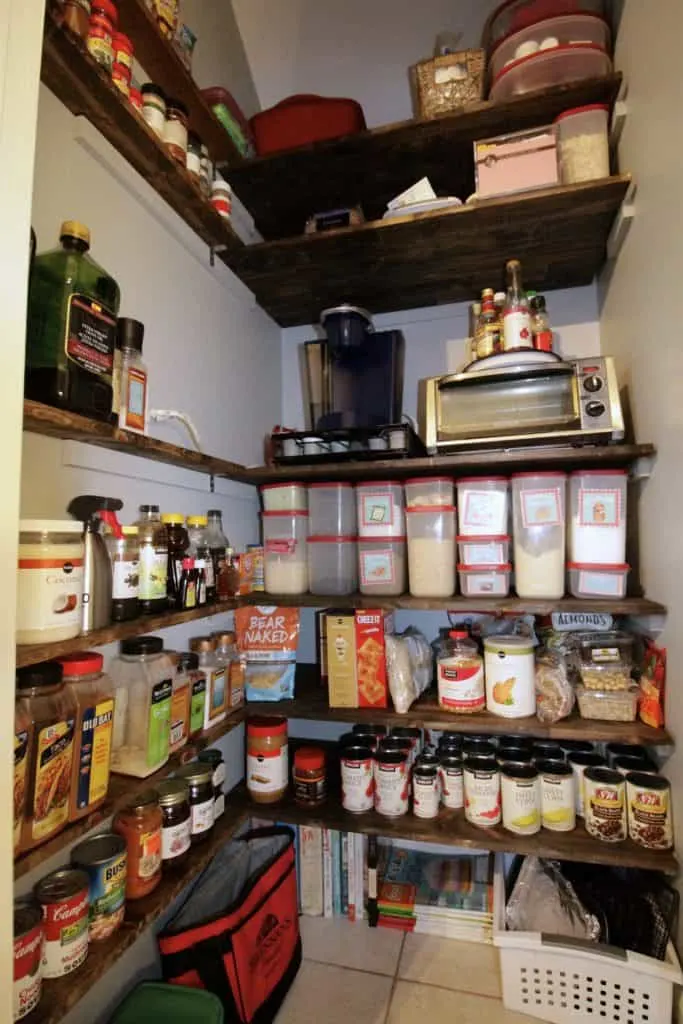

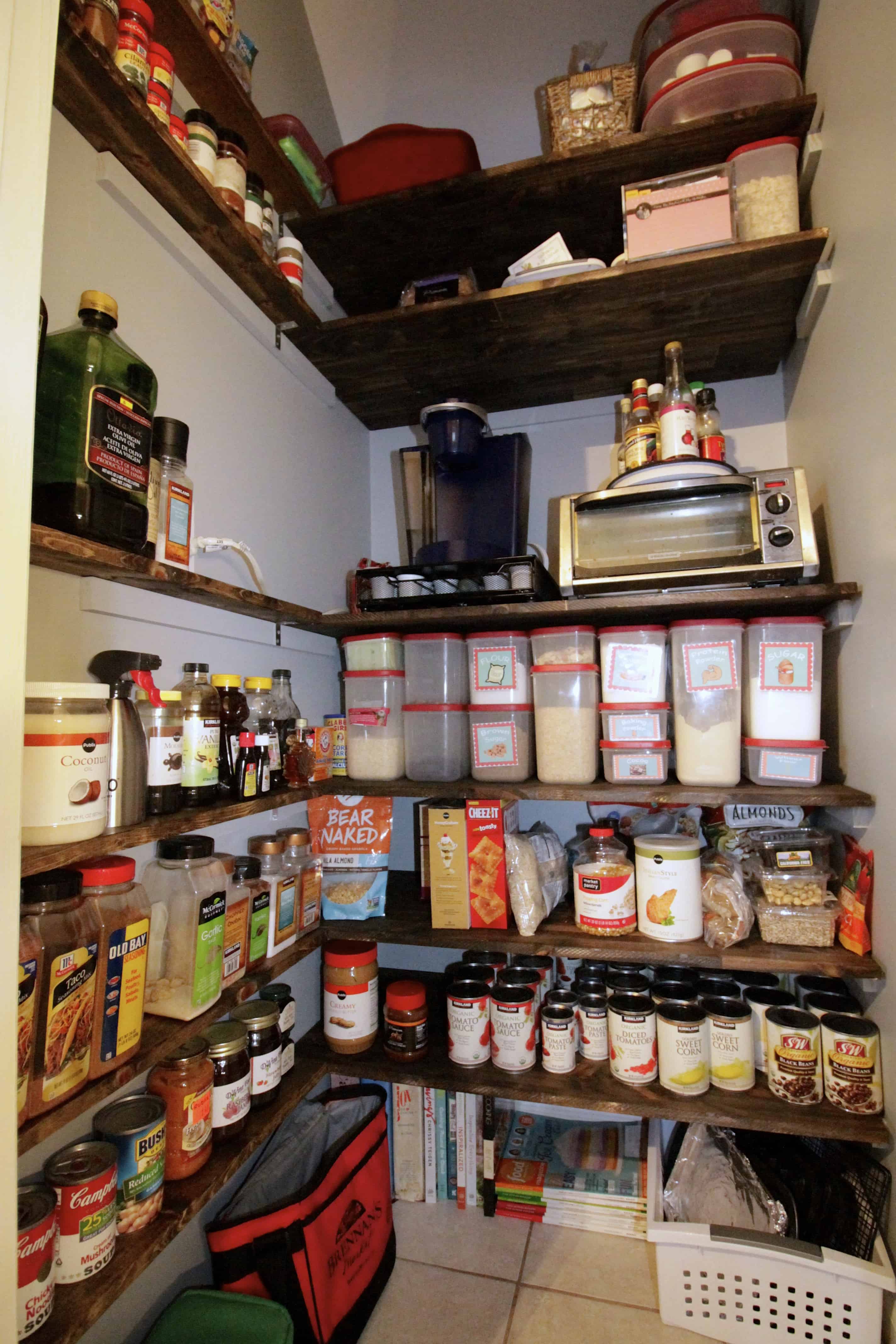

The last thing to do was to stock our shelves!

Our Complete Pantry Remodel - Charleston Crafted
Our Complete Pantry Remodel - Charleston Crafted
Our Complete Pantry Remodel - Charleston Crafted
Our Complete Pantry Remodel - Charleston Crafted

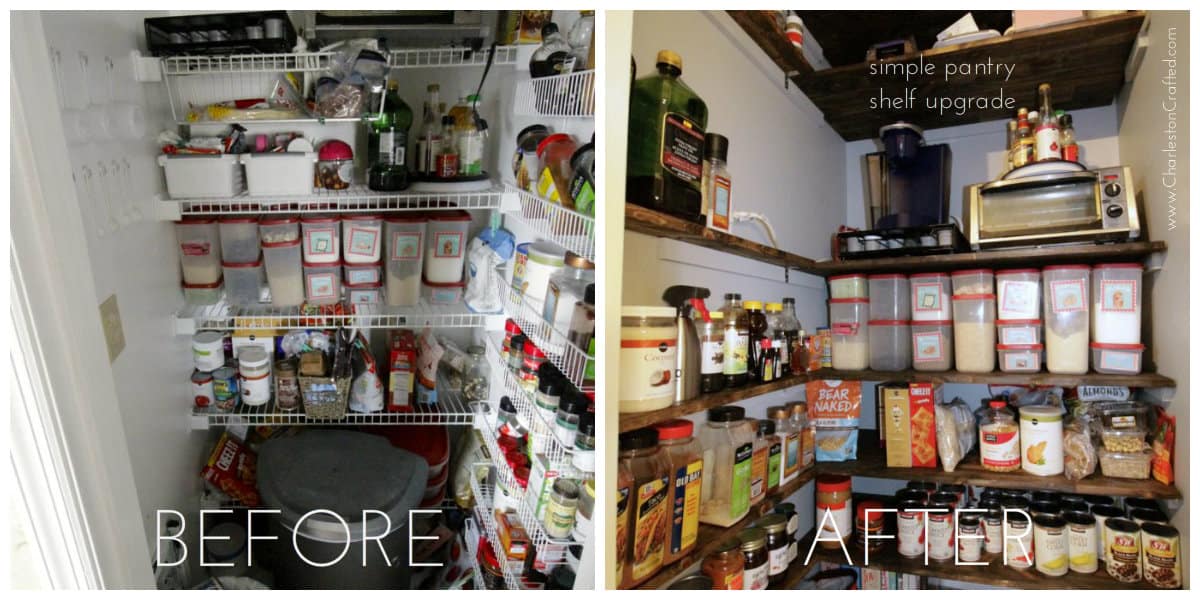

We’re thrilled with how our pantry remodel turned out. It really wasn’t hard at all, but we needed three days to allow for various drying times. Now, we have custom pantry that fits everything we had before and more, plus allows for rearranging in the future.

A few things to note – we are on the lookout for a shorter extension cord for the appliances. The current one is 6 foot and has a lot of excess, but we haven’t been able to find a 3 foot 3 prong 2 plug cord yet.

Also, this set up works for us because we really don’t have a lot of pantry food. We have baking stuff, a selection of similar cans that we buy in bulk, oils and spices, and a few dry goods.

We primarily eat fresh foods or freezer meats. If we had a lot of pantry-items, the large shelf in the middle probably wouldn’t have worked for us. That’s why it’s great to go custom!

We completed this makeover on Sunday and have since decided to add a few more things – including one more spice shelf, a magnet board, and our measuring cups.

Be sure to check out a couple other details we did to accessorize and complete our pantry!

Here’s how we added an antique door to the pantry!
